Computer Organization and Architecture

Cache Memory

Outline

• Key terms
• Computer Memory System Overview
• Cache Memory Principles
• Elements of Cache Design

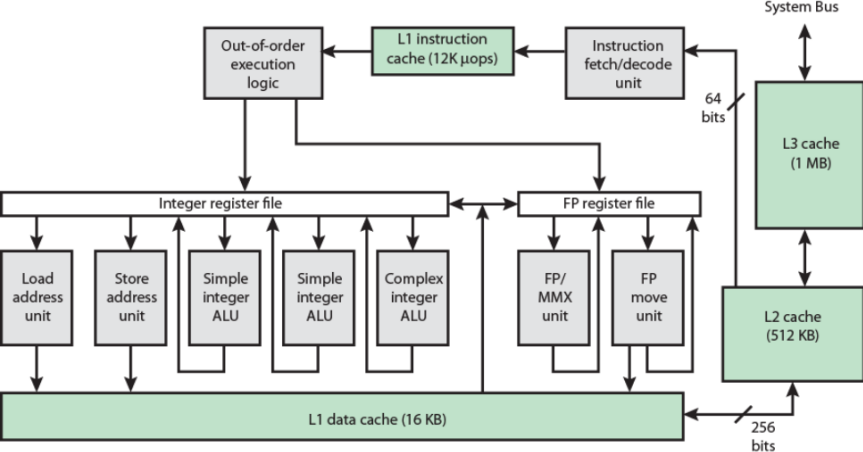

• Pentium 4 Cache Organization
• ARM Cache Organization

Key terms

• access time

• associative mapping

• cache hit

• cache line

• cache memory

• cache miss

• data cache

• direct access

• direct mapping

• high-performance computing

• hit ratio

• instruction cache

• L1 cache

• L2 cache

• L3 cache

• Locality

• logical cache

• memory hierarchy

• multilevel cache

• physical cache

• random access

• replacement algorithm

• set-associative mapping

• spatial locality

• split cache

• Tag

• temporal locality

• unified cache

• virtual cache

• write back

• write once

• write through

Computer Memory System Overview

Memory

• In a Von Neumann structured computer, memory does not distinguish between instructions and data

• The performance of memory is constantly improving, but it is far from the speed of CPU

• Leading to a growing performance difference between them, which seriously affects the overall performance of the computer

Characteristics of Memory Systems

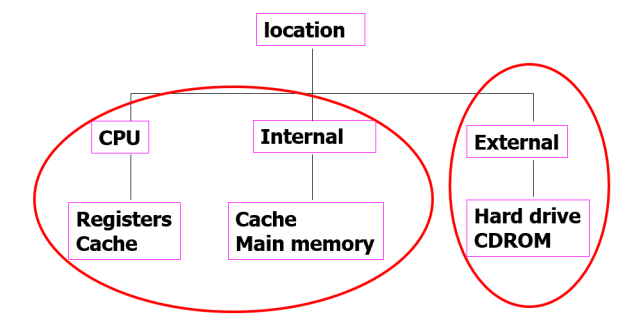

Location

• The storage location mainly refers to whether the memory is inside or outside of the computer

• Inside memory

  • Registers and Cache in CPU
  • Internal Cache and main memory

• The processor needs to access these stores through the I/O controller, so it is called an external memory

Capacity Unit

• Bit: 0 or 1

• Byte: 8 bit

• Word size

  • The natural unit of organisation

  • Not a fixed length

  • Now it is generally 16 bit, 32 bit, or 64 bit

  • Most registers are one word

  • Integers may be in words

  • Instruction length is generally the same as the word

  • Bus width

Capacity

• Capacity: the amount of information can be stored

  • Number of addressable units

  • Unit size

• Addressable unit: refers to a storage unit that can be uniquely addressed in memory

• ! ! ! $Capacity=Addressable\ unit\ number \times unit\ size\newline$

  • Number of words
  • Number of Bytes

Unit of transfer

• Internal

  • Usually governed by data bus width, word

• External

  • Usually a block which is much larger than a word

• Addressable unit

  • Smallest location which can be uniquely addressed

  • Word internally

  • Cluster on external disks

Access methods ! ! !

• Sequential

  • Start at the beginning and read through in order

  • Access time depends on location of data and previous location

  • e.g. tape

• Direct

  • Individual blocks have unique address

  • Access is by jumping to vicinity(nearly) plus sequential search

  • Access time depends on location and previous location

• Random

  • Individual addresses identify locations exactly

  • Access time is independent of location or previous access

  • e.g. RAM

• Associative

  • Data is located by a comparison with contents of a portion of the store

  • Access time is independent of location or previous access

  • e.g. cache

Performance ! ! !

• Access time

  • Time between presenting the address and getting the valid data

  • For RAM: time to address the unit and perform the transfer

  • For non-RAM: time to position the R/W head over the desired location

• Memory Cycle time

  • Applied to RAM

  • Time may be required for the memory to “recover” before next access

  • $Memory\ Cycle\ time=access\ time+additional\ time\ required\ before\ next\ access\newline$

• Transfer Rate

  • Rate at which data can be moved

  • ! ! ! For RAM: $Rate = \frac{1}{Cycle\ time}\newline$

  • ! ! ! For non-RAM: $Rate=\frac{N}{T_N-T_A}\newline$

    • $N: number\ of\ bits\newline$

    • $T_N:time\ to\ write\ or\ read\ N\ bits\newline$

    • $T_A=average\ access\ time(time\ for\ location)\newline$

Physical types

• Semiconductor

  • RAM

• Magnetic

  • Disk & Tape

• Optical

  • CD & DVD

• Others

  • Bubble

  • Hologram

Physical characteristics

• Decay or not

  • Decay: Flash disk

  • No decay: Hard disk

• Volatility or not

  • Volatility: Memory

  • No volatility： Hard disk

• Erasable or not

  • Erasable ：Hard disk

  • No erasable: CD-ROM

• Power consumption

The Memory Hierarchy

Design Objectives

• Major design objective of any memory system

  • To provide adequate storage capacity

  • An acceptable level of performance

  • At a reasonable cost

Design methods

• Balance for $[cost,capacity,performance]\newline$
  • Faster access time -> greater cost per bit
  • Greater capacity -> smaller cost per bit
  • Greater capacity -> slower access time

The hierarchy

• Use memory hierarchy

  • Each level characterized by its size, access time, and cost per bit
  • Different levels of memory interact in some way

• Goal $\rightarrow$ Try to basically match the speed of the CPU and the memory closest to it

Diagram

Cache Memory Principles

• What is cache?

  • A high-speed memory faster than general RAM

  • Using expensive but faster SRAM technology

• Use cache

  • It is possible to build a computer which uses only static RAM, this would be very fast, but cost a very large amount

• Hierarchy is the solution

Locality of Reference

• Most programs are highly sequential; the next instruction usually comes from the next memory location
• Data is usually structured, and data in these structures normally are stored in continuous memory locations
• Short loops are a common program structure, especially for the innermost sets of nested loops. This means that the same small set of instructions is used over and over

Good spatial locality

1
2
3
4
5
6
7
8

template <std::size_t M, std::size_t N>
int fun1(const std::array<std::array<int, N>, M>& arr) {
	int sum = 0;
	for (std::size_t i = 0; i < M; i++)
		for (std::size_t j = 0; j < N; j++)
			sum += arr[i][j];
	return sum;
}

bad spatial locality

1
2
3
4
5
6
7
8

template <std::size_t M, std::size_t N>
int fun2(const std::array<std::array<int, N>, M>& arr) {
	int sum = 0;
	for (std::size_t j = 0; j < N; j++)
		for (std::size_t i = 0; i < M; i++)
			sum += arr[i][j];
	return sum;
}

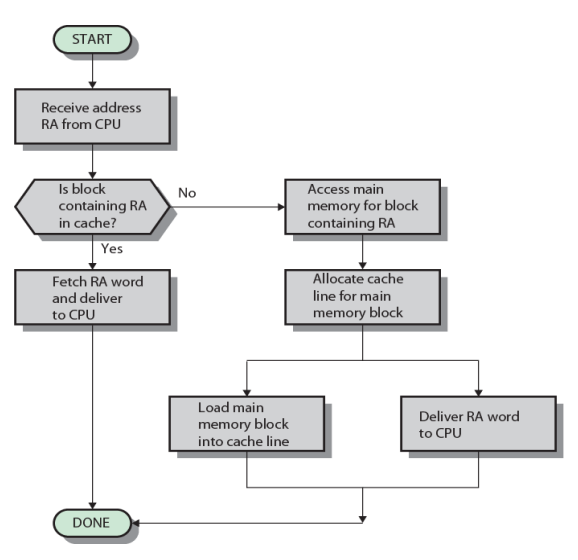

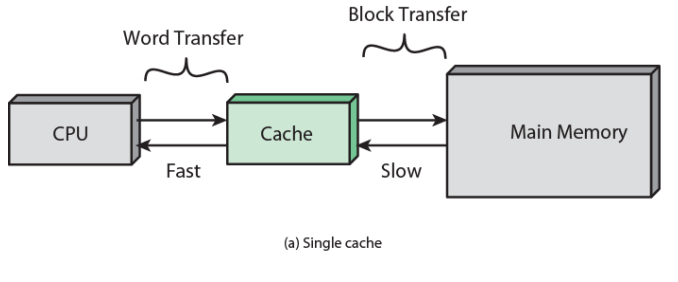

Cache Memory Principles

• Cache stores a small part of memory data

  • If the data required by the CPU is in the cache, it will read the cache directly without reading the memory

  • If the required data is not in the cache, read the memory and update the cache

Characteristic

• Small amount

• Fast access - Operate at nearly the speed of the processor

• Sits between normal main memory and CPU

• May be located on CPU chip or module

• Very expensive

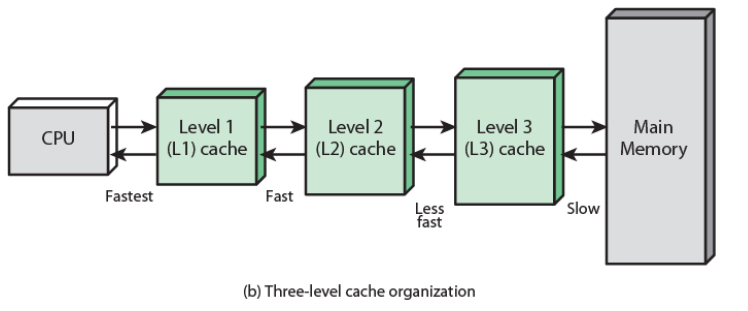

Multi-level cache

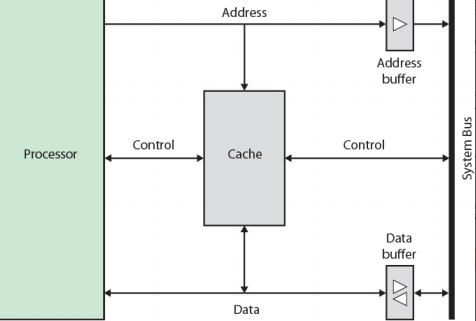

Typical cache organization

Elements of Cache Design

• Cache Addresses

• Cache Size

• Mapping Function

• Replacement Algorithm

• Write Policy

• Line Size

• Number of Cache

Virtual address

• A technology of Memory Management

  • Allows programs to address memory from a logical point of view, without regard to the amount of main memory physically available

• A memory expansion technology

  • It will not change the size of the physical space of memory, but it can make the way of program accessing memory more flexible

• Hardware memory management unit (MMU) translates each virtual address into a physical address

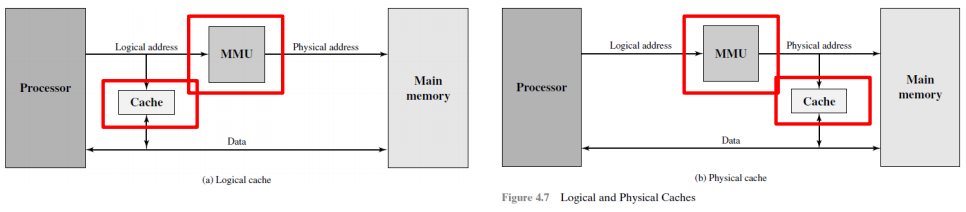

Logic cache and Physical cache

• Logic cache: Between processor and virtual memory management unit

• Physical cache: Between MMU and main memory

Logic cache

• Processor accesses cache directly, without going through the MMU(Memory management Unit)

• Virtual addresses use same address space for different applications(logicial)

• Must flush cache on each context switch

Physical cache

• Physical cache stores data using main memory physical addresses

• Logical address is translated into the physical address by the MMU, and then the cache is accessed

Cache size

• More cache size is expensive
• More cache is faster(up to a point)
• Checking cache for data takes time

Cache hits and misses

• Cache hits

  • The CPU requested data is in cache, thus cache can pass the contents to the CPU

  • Hit Ratio: The fraction of memory access found in the upper level

  • $Hit\ Time=Access\ Time+Time\ to\ determine\ hit\ or\ miss(scan\ the\ cache)\newline$

  • $Hit\ Ratio=\frac{N_{hit}}{N_{hit}+N_{total}}\newline$

• Cache miss

  • The requested data is not in cache, it must be read from the memory
  • $Miss\ Ratio=1-Hit\ Ratio\newline$
  • $Miss\ Penalty=Time\ to\ replace\ a\ block\ in\ the\ cache+Time\ to\ deliver\ the\ missed\ data\ to\ the\ processor\newline$

• Cache performance is often measured in terms of the $\frac {hit}{miss}$ ratio

• $T_{average}=Hit\ Ratio \times T_{hit}+Miss\ Ratio \times T_{miss}=Hit\ Ratio \times T_{hit}+(1-Hit\ Ratio) \times T_{miss}\newline$

Cache mapping ! ! !

Direct mapping

• Each block of main memory maps to only one cache line

  • If a block is in cache, it must be in one specific place

• Address is in two parts

  • Least Significant w bits identify unique word

  • Most Significant s bits specify one memory block

• The MSBs are split into a cache line field r and a tag of s-r (most significant)

Characteristics of direct mapping

• Fixed location for given block
• Frequent replacement operations, low hit rate
• jitter
  • If a program accesses 2 blocks that map to the same line repeatedly, cache misses are very high

Associative mapping

• A main memory block can load into any line of cache

  • Memory address is interpreted as tag and word

  • Tag uniquely identifies block of memory

  • Every line’s tag is examined for a match

• Mapping is quite flexible

• Cache searching gets complex

Characteristics of associative mapping

• Advantage

  • Flexibility

• Disadvantage

  • Large tag memory

  • The complex circuitry required to examine the tags of all caches lines in parallel

• Replacement algorithms are important to maximize the hit ratio

Set Associative Mapping

• Cache is divided into a number of sets cache

  • Each set contains a number of lines

  • A given block maps to any line in a given set

• Use set field to determine cache set to look in

• Compare tag field to see if we have a hit

Replacement algorithms

For direct mapping

• When a new block in the memory needs to be written to the cache, you can only replace the data in the previous cache

For associative mapping

• If there are blank lines in the corresponding multiple lines, write them directly

• If there is no blank row in the corresponding multiple rows, you need to determine which row to overwrite

Replacement strategies

• Least Recently used (LRU)

  • usage time of the cache line needs to be recorded

• First in first out (FIFO)

  • replace block that has been in cache longest

• Least frequently used

  • replace block which has had fewest hits(by OS)

• Random

Write policy

• content in cache are updated
• there are multiple CPUs in the system
• I/O may address main memory directly. Bringing data consistency problems

Write through

• All writes go to main memory as well as cache

• Multiple CPUs can monitor main memory traffic to keep local (to CPU) cache up to date

• Lots of traffic

• Slows down writes

Write back

• Updates initially made in cache only

• Update bit for cache slot is set when update occurs

• If block is to be replaced, write to main memory only if update bit is set

• I/O must access main memory through cache

• In multi CPU architecture, there is a cache consistency problem when sharing memory

• DMA may also have consistency problems

Cache Coherency

• Bus watching with write through

• Hardware transparency

  • The hardware method is used to ensure that all changes to main memory through cache will be reflected in all caches at the same time

• Noncacheable memory

  • Part of the main memory is shared by multiple processors

  • All accesses to shared main memory will result in cache invalidation

  • The shared data in the memory will not be copied to the cache

Multilevel Caches

• High logic density enables caches on chip
• Common to use both on and off chip cache

Unified and Split Caches

• Split Cache -> there was an architecture using two L1(Level 1) caches, one for storing data and the other for storing instructions

  • When instructions are needed, access the instruction cache

  • Access the data cache when data is needed

• Advantages of unified cache

  • Easy design & implement

  • Balances load of instruction and data fetch

  • Higher hit rate

• Advantages of split cache

  • Eliminates cache contention between instruction fetch/decode unit and execution unit

  • Important in pipelining

Pentium 4 Cache Organization

ARM Cache Organization

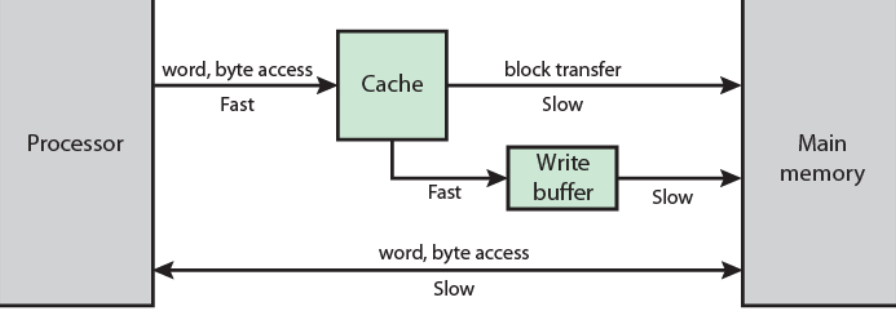

• Small FIFO write buffer

  • Enhances memory write performance

  • Between cache and main memory

  • Much small than cache

  • Data put in write buffer at processor clock speed

  • Processor continues execution

  • External write in parallel until empty

  • If buffer full, processor stalls
