Computer Organization and Architecture

Instruction Sets: Addressing Modes and Formats

Outline

• Addressing

• x86 and ARM addressing modes

• Instruction Formats

• x86 and ARM instruction formats

Addressing

What is addressing mode?

• Elements in the instruction include: opcode, source operand, destination operand, and next instruction address

• Possible positions of operands

  • Memory

  • Register

  • Immediate

  • I/O

• Addressing mode specifies how to obtain an operand of an instruction

• Addressing is relatively simple when the operand is in a register or immediate

• If the operand is in memory

  • The address field of an operand in an instruction cannot be too long

  • Want to access a large memory space

• Memory addressing adopts multiple addressing modes

  • Balance the addressable address range, addressing flexibility, addressing complexity and the number of storage units occupied

Memory addressing

• Absolute

• Displacement

• Indexed

• register indirect

• memory indirect

• Autoincrement

• Autodecrement

Advantage

• Expanding addressable address space

• Improved addressing flexibility

• Provide better program architecture to help programmers design more flexible programs

  • For example, array, pointer based access, etc

Common addressing mode

• Immediate

• Direct

• Indirect

• Register

• Register Indirect

• Displacement (Indexed)

• Stack

Immediate addressing

• Operand is part of instruction

  • Operand = address field

• e.g.

  • ADD 5

  • Add 5 to contents of accumulator

  • 5 is operand

• No memory reference to fetch data

  • Fast

  • Limited range: length of the address field in the instruction is limited

  • Inflexible

1

MOV BL,10

• 指令中包含了操作码和立即数

• 复杂一点的指令中，操作数包括立即数，以及其他寻址方式

1

MOV BL,10

• 这个指令把10这个立即数送到BL寄存器中

• 立即数寻址在很多指令中都会用到，但是受到的限制比较大

Direct addressing

• Address field contains address of operand

• Effective address (EA) = address field (A)

  • Single memory reference to access data

  • No additional calculations to work out effective address

  • Limited address space

1

ADD A

• Add contents of cell A to accumulator

• Look in memory at address A for operand

• 指令中给出了操作数在主存储器中的地址

• 通过一次存储器访问，就可以得到操作数

• 操作数的地址直接在指令中。指令的长度有限，能留给直接寻址的地址域的长度有限，导致寻址空间有限

Indirect addressing

• Memory cell pointed to by address field contains the address of (pointer to) the operand

• EA = (A)

  • Access the storage unit with address A to obtain the actual address of the operand

  • Access the memory according to this address to get the operand

  • Memory needs to be accessed twice

1

ADD (A)

• Add contents of cell pointed to by contents of A to accumulator

• Large address space

  • $2^n\ where\ \rightarrow n=word\ length\newline$

• May be nested, multilevel, cascaded

  • e.g. EA=((A))

  • Effective address is the value of the storage unit pointed to by (A)

• Multiple memory accesses to find operand

• Hence slower

• 指令中包含了一个地址A

• 根据A去存储器中访问，得到操作数的地址

• 根据这个地址去获得操作数

• 要2次访问存储器，访问速度相对比较慢

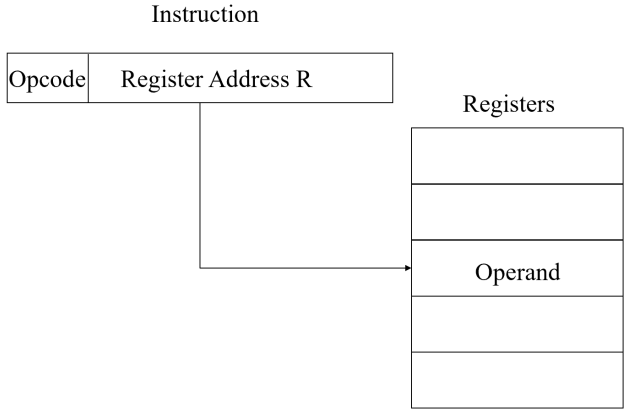

Register addressing

• Operand is held in register named in address field

• EA = R

• Limited number of registers

  • Register address field is 3-5 bits, and the number of accessible registers ranges from 8 to 32

• Very small address field needed

  • Shorter instructions
  • Faster instruction fetch

• Similar to direct addressing

  • No memory access

  • Very fast execution

• Very limited address space

• Multiple registers helps performance

  • Requires good assembly programming or compiler writing

  • Multiple used operands are placed in registers

• 寄存器寻址和存储器直接寻址非常类似

• 访问的是CPU内部的寄存器

• 访问寄存器的速度比访问存储器快很多，并且寄存器的数量少，充分利用好寄存器寻址，可以提高处理速度

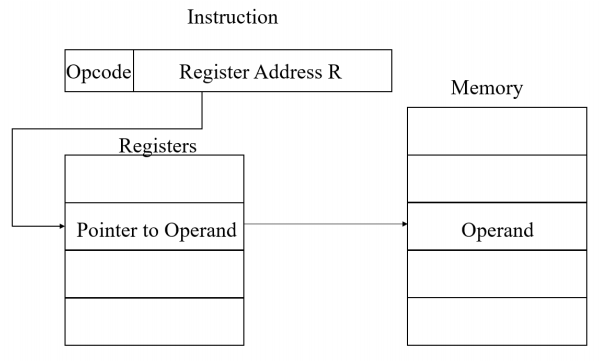

Register indirect addressing

• Similar to indirect addressing

• EA = (R)

  • Operand is in memory cell pointed to by contents of register R

• Large address space($2^n$)

  • n is the word length of register

• Much faster than indirect addressing

  • One memory access + one register access

• 指令中的地址域中是寄存器R，而寄存器R中的值是操作数在主存中的地址

• 经过两次访问，才能得到操作数。第一次是寄存器访问，第二次是存储器访问

• 由于寄存器的访问时间很短，所以寄存器间接寻址的时间，基本上和访问存储器的时间相当

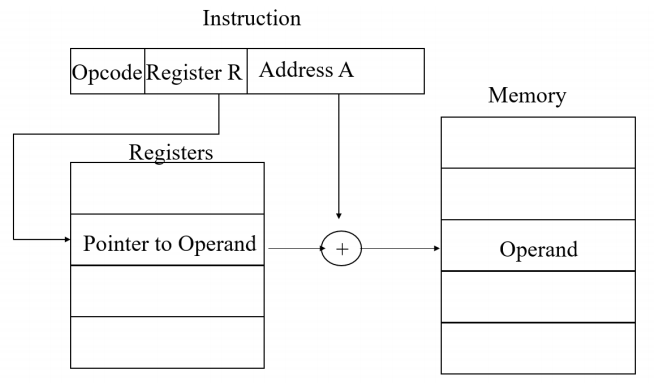

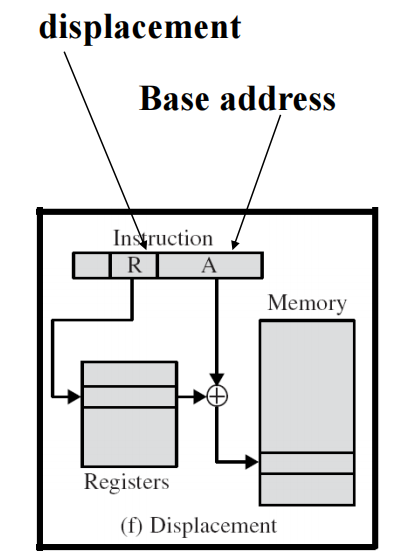

Displacement addressing

• Add a displacement to the base address to obtain the actual address of the operand

  • EA = A + (R)

• Address field hold two values

  • A = base value
  • R = register that holds displacement
  • or vice versa

• The operand address is the relative address of the base address, which is often used in virtual addresses

• 指令中包含了2个地址字段，寄存器R和基址A

• 寻址时，根据R的值，去寄存器中读取操作数的地址偏移量，加上基址A，得到操作数在主存中的地址，访问存储器，得到操作数

• 偏移寻址有三种方式：第一种是相对寻址，第二种是基址寄存器寻址，第三种是变址寻址

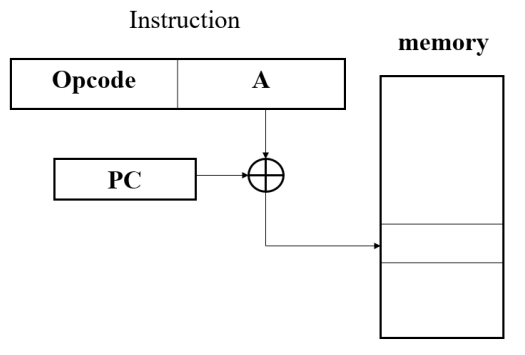

Relative addressing

• A version of displacement addressing

  • R = Program counter, PC

  • EA = A + (PC)

  • obtain the operand from the memory, and the address of the operand comes from PC and A

• Locality of reference & cache usage

  • Program counter is instruction address

  • Based on the principle of locality, the probability of data in cache is very high, and data access is fast

• 相对寻址中，隐含使用了PC作为基础地址，用指令中地址域中的A作为偏移量

• 通过两个的计算，得到操作数在主存中的地址

• 根据这个地址，访问存储器，得到实际的操作数

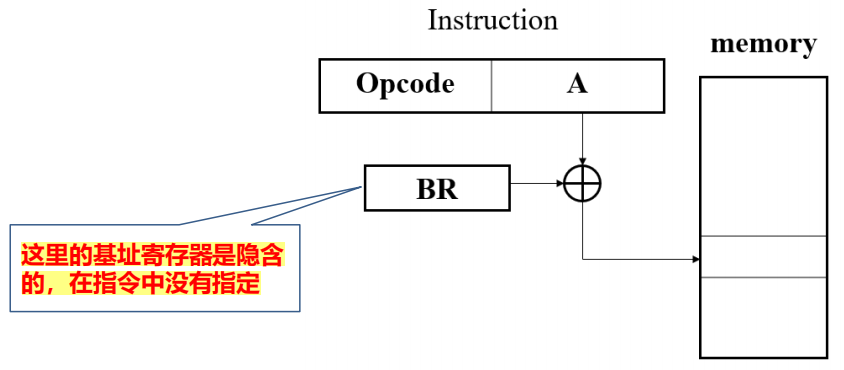

Base-register addressing

• Use a register R as the base register

  • R holds pointer to base address

  • R may be explicit or implicit

  • e.g. segment registers in 80x86 is implicit

• The address field in the instruction gives displacement A

• The operation of R and A can obtain the actual address of the operand

• 基址寄存器BR中包含了寻址的基址，而指令中的地址字段中包含了偏移量

• 这两个相加，得到操作数地址，访问存储器，获取操作数

• 基址寄存器寻址的寻址过程包括：1. 访问1次寄存器；2. 进行一次加法运算；3. 访问一次主存

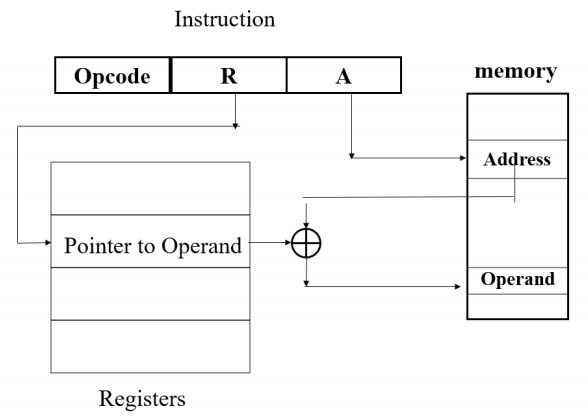

Indexed addressing

• One type of displacement addressing mode

• The base address is in the address field, and the offset is in the register

  • A = base

  • R = displacement

  • EA = A + R

• Good for accessing arrays

  • EA = A + R
  • R++

• 变址寻址中，寄存器中的值是偏移量，基址为指令中给出的地址

• 寻址时，将基址和寄存器中的偏移量进行相加，得到存储器地址

• 根据这个地址访问内存，得到操作数

Combinations

• Post-index: Indexing after indirect addressing

  • First get address from memory, then indexing address

  • EA = (A) + (R)

• 指令中地址字段的内容用来访问存储器，获得操作数的直接地址
• 直接地址被寄存器值变址，得到操作数的实际地址，然后访问这个地址，得到操作数

• Pre-index: Indirect addressing after indexing

  • Index first, read the memory after getting the address

  • EA = (A + (R))

• 指令中地址字段和寄存器先进行变址，得到操作数的间接地址

• 访问存储器，得到操作数的实际地址

• 再一次访问存储器，得到操作数

Stack addressing

• Operand is implicitly on top of stack

• e.g. ADD

  • Pop top two number from stack

  • Add the two numbers

  • Push the sum

x86 and ARM addressing modes

Swapping

• Problem: I/O is so slow compared with CPU that even in multi-programming system, CPU can be idle most of the time

• Solutions

  • Increase main memory

    • Expensive
    • Leads to larger programs

  • Swapping

Partitioning

• Splitting memory into sections to allocate to processes (including Operating System)

• Fixed-sized partitions

  • May not be equal size

  • Process is fitted into smallest hole that will take it (best fit)

  • Some wasted memory

  • Leads to variable sized partitions

Variable sized partitions

• Allocate exactly the required memory to a process

  • This leads to a hole at the end of memory, too small to use

  • Only one small hole - less waste

• When all processes are blocked, swap out a process and bring in another

  • New process may be smaller than swapped out process
  • Another hole

• Eventually have lots of holes，called fragmentation

• Solutions

  • Coalesce - Join adjacent holes into one large hole

  • Compaction - From time to time go through memory and move all hole into one free block

Relocation

• Instructions contain addresses

  • Locations of data

  • Addresses for instructions (branching)

• No guarantee that process will load into the same place in memory

  • Logical address - relative to beginning of program

  • Physical address - actual location in memory (this time)

  • Automatic conversion using base address

Paging

• Use paging to solve the problem of memory waste

  • Split memory into equal sized, small chunks-page frames

  • Split programs (processes) into equal sized small chunks–pages

  • Allocate the required number page frames to a process

• Operating System is responsible for the management of page tables

  • A process does not require contiguous page frames

  • Each process uses a page table to record which page frames in memory it uses

• Each process has its own page table

• Each page table entry contains the frame number of the corresponding page in main memory

• Two extra bits are needed to indicate

  • whether the page is in main memory or not

  • Whether the contents of the page has been altered since it was last loaded

Real and virtual memory

• Real memory

  • Main memory, the actual RAM

• Virtual memory

  • Memory on disk

  • Allows for effective multiprogramming and relieves the user of tight constraints of main memory

• Advantage of virtual memory

  • You do not need to load all processes into memory

  • Running multiple processes simultaneously

  • Improved operational efficiency

Segmentation

• Paging is not (usually) visible to the programmer

• Segmentation is visible to the programmer

• Usually different segments allocated to program and data

• May be a number of program and data segments

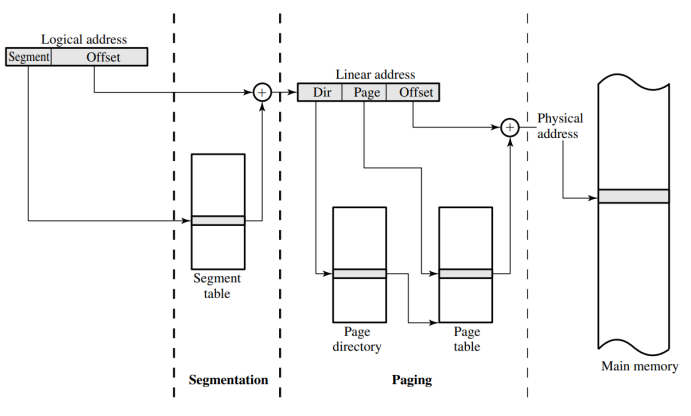

x86 addressing modes

• x86 adopts a memory management mechanism combining segments and pages

• Virtual or effective address is offset into segment

  • Starting address plus offset gives linear address

  • This goes through page translation if paging enabled

• 9 addressing modes available

  • Immediate

  • Register operand

  • Displacement

  • Base

  • Base with displacement

  • Scaled index with displacement

  • Base with index and displacement

  • Base scaled index with displacement

  • Relative

• 指令中给的逻辑地址包含两个部分：段和段内偏移量

• 查找段表，可以得到段起始地址，加上段内偏移量，得到操作数的线性地址

• 线性地址采用了分页的方式，所以还需要通过页转换机制，得到物理地址，最后通过物理地址查询得到这个操作数。页表采用两级页表的形式

• 6个段寄存器，每个进程使用哪个段寄存器由指令和执行的上下文来确定。每个段寄存器对应一个段描述符表，记录了段的访问权限，段的起始地址和段的长度

• 基址寄存器和变址寄存器，用于构造复杂的寻址方式

• 基址、变址以及指令中的偏移量计算得到有效地址，加上段地址得到操作数的线性地址，然后再根据分页的规则，得到物理地址

Terms

• Effective address

• Physical address

• LA: linear address

• SR : segment register

• B: base register

• I : index register

• S: scale factor

x86 addressing modes

• 8个32位通用寄存器，分别是EAX、EBX、ECX、EDX、ESI、EDI、ESP、EBP

• 8个16位通用寄存器，AX、BX、CX、DX、SI、DI、SP、BP

• 8个8位通用寄存器，AH、BH、CH、DH、AL、BL、CL、DL

• 通过段寄存器来确定段的起始地址，然后计算得到线性地址

• 比例变址寻址带偏移量寻址模式中，变址比例因子为1、2、4、8，这个是因为x86是按字节寻址，设置比例因子可以按16位或32位进行变址

• 相对寻址主要用于控制转移指令

• 将偏移量加到程序计数器中，得到相对于下一个需要执行指令的地址的偏移地址

• 偏移量是一个有符号整数，通过计算，可以增加也可以减少程序计数器中的地址值

ARM addressing modes

• ARM is a RISC architecture processor

• RISC uses simple addressing modes, but ARM provides more addressing modes

• Only load/store instructions can reference memory

• Indirectly through base register plus offset

• Base register itself may be updated during addressing

• 3 addressing mode

Offset

• 偏移寻址：只偏移，不变址。从基址寄存器增加或减少偏移量来形成内存地址

1

STRB r0, [r1,#12]

• 将r0存放到存储器中，存储器地址为r1的值加上立即数12

Pre-index

• 内存地址跟偏移寻址一样，基址寄存器增加或减少偏移量来形成内存地址

• 内存地址会写回到基址寄存器，基址寄存器的值会增加或减少一个偏移量

1

STRB r0, [r1,#12]!

• 这里！就是标识是前变址

• 寻址完成后，r1寄存器的值变成了r1-12

Post-index

• 操作数的地址就是在基址寄存器的值
• 寻址完成后，基址寄存器的值会增加或减少一个偏移量，相当于寻址完成后，基址寄存器自身增加或减少了一个偏移量

1

STRBv r0, [r1],#12

• #表示后变址

• 寻址用r1地址，同时r1寄存器的值变成了r1-12

• Base register acts as index register for pre-index and postindex addressing

• Offset either immediate value in instruction or another register

• If register，scaled register addressing available

  • Offset register value scaled by shift operator

  • Instruction specifies shift size

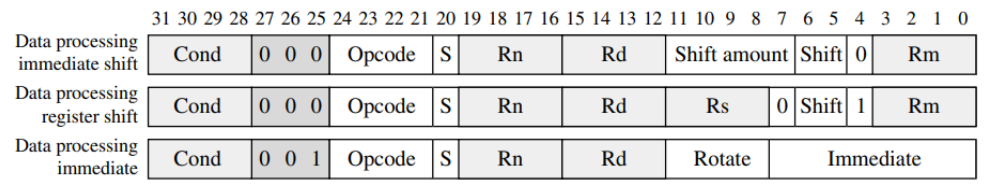

• Data Processing

  • Register addressing

  • Value in register operands may be scaled using a shift operator

  • Or mixture of register and immediate addressing

Addressing of branch

• Branch

  • Only immediate

  • Instruction contains 24 bit value

  • When addressing, this immediate value will be shifted two bits to the left, reaching the boundary of a 32-bit word

  • Shifted 2 bits to the left, which is equivalent to an offset of 26 bits. The effective address range is+- 32MB

ARM Load/Store Multiple Addressing

• One instruction can load or store multiple data at the same time

  • Load or store a set of general registers

• 16-bit instruction field in instruction specifies list of registers

  • Registers corresponds to a sequential storage unit in memory
  • Memory unit with the lowest address corresponds to the register with the lowest number

• Base register specifies first main memory address

• Four types

  • increment after
  • increment before
  • decrement after
  • decrement before

• Incrementing or decrementing starts before or after first memory access

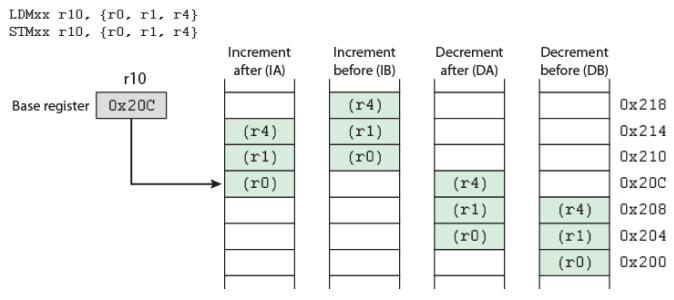

• r10开始的三个单元内容加载到r0，r1，r4这三个寄存器中。R0为低地址，r4为高地址

• 采用后递增，从0x20C开始，连续三个存储单元的内容取出后，分别给r0，r1和r4。采用前递增，第一个存储单元的地址要在基址寄存器中的地址基础上加1，然后取连续三个存储单元的内容取出后，分别给r0，r1和r4

• 对于后递减，就是从基址寄存器开始，地址递减的连续三个存储单元。对于前递减，就是先在基址寄存器的地址上减1，然后地址递减的连续三个存储单元

Instruction Formats

• Instruction set is the interface provided by the processor to the upper layer

  • An important symbol of CPU performance

  • The rationality of the instruction set has a great impact on the performance of the CPU

• Therefore, the design of instruction format is the core content of processor design

Instruction formats

• Instruction include

  • Opcode

  • Operand(s) (implicit or explicit) and addressing mode

• Instruction formats: How many bits do the parts of the instruction occupy, and in what order

• Layout of bits in an instruction

• Usually more than one instruction format in an instruction set

Key of instruction formats

• The width of opcodes: determines number of operation

  • The more opcodes, the more functions of the instruction set, and the larger the number of bits

• The width of operands: effect the instruction length

  • The operand takes up a large proportion of the instruction length

  • Number of operands, addressing mode and size of addressing space have a great impact on the length of instructions

• Addressing modes: determine the complexity and the length of the instruction

  • The more complex the addressing mode is, the more operations are required to obtain the physical address of the operand, and the higher the time complexity is

  • Complex addressing mode can use less address field length to obtain larger addressing space and save instruction length

• First step in instruction set design is to determine the length of instructions

• Trade off between powerful instruction repertoire and saving space

Summary

• The operation code and operands should have as many digits as possible

• The longer the instruction, the more memory space it takes

• Generally，instruction length is consistent with the bus width , or an integer multiple

• In the design of instruction set

  • Every part of the directive needs to be properly planned

  • Seeking the best balance among various design scheme

Allocation of bits

• After the length of the instruction is determined, each bit in the instruction needs to be allocated reasonably to maximize the use of each bit

  • If the opcode is long, operands is short
  • Variable length opcode, additional bits determine operation

• First, you need to determine the number of operands and opcodes

The following factors need to be considered

• Number of operands

• Number of addressing modes

• Register versus memory

• Number of register sets

• Address range

• Address granularity

Number of addressing modes

• Some opcodes implicitly specify the addressing mode of the operand, which does not need to be specified separately

• Sometimes it is necessary to explicitly specify the addressing mode of this operand, and one or more addressing mode bits are required

• There may be multiple addressing modes in an instruction

Number of operands

• If the instruction only supports one operand, it is troublesome to write the program

• Generally, two operands are supported

• Each operand hope an independent addressing mode

  • Flexible

  • Need addressing indication bit

• Some processors allow one operand to specify the addressing bit

Register versus memory

• Data needs to be loaded into CPU through registers for processing
• If there is only one register, it does not need to be specified, but it is very troublesome to use
• Several registers are generally provided
  • Several bits can specify a register, which takes up less instruction bits
• Most processors have more than 32 registers

Number of register sets

• Most processors provide only one set of general-purpose registers

  • Store Data

  • Store address field in offset addressing mode

• Some processors, such as the x86 processor, can provide multiple sets of registers

  • Divide by function, some store data, some store offset

  • Opcode implicitly determines which set of registers to use

  • Reduce the number of instructions

Address range

• In direct addressing, the address range is determined by the length of the address field in the instruction

  • Instruction length is limited

  • The address range of direct addressing is small

• General use offset addressing

  • Length of the address register is critical

  • If the offset is large, the length of the address field in the instruction is also long

Address granularity

• The smaller the addressable address granularity is, the longer the address bits are required

• Addressing by byte

  • Some operations are more convenient

  • e.g. character processing

  • More address bits required

• Operate according to words

  • Number of address bits reduced

  • Reduced operational flexibility

x86 and ARM instruction formats

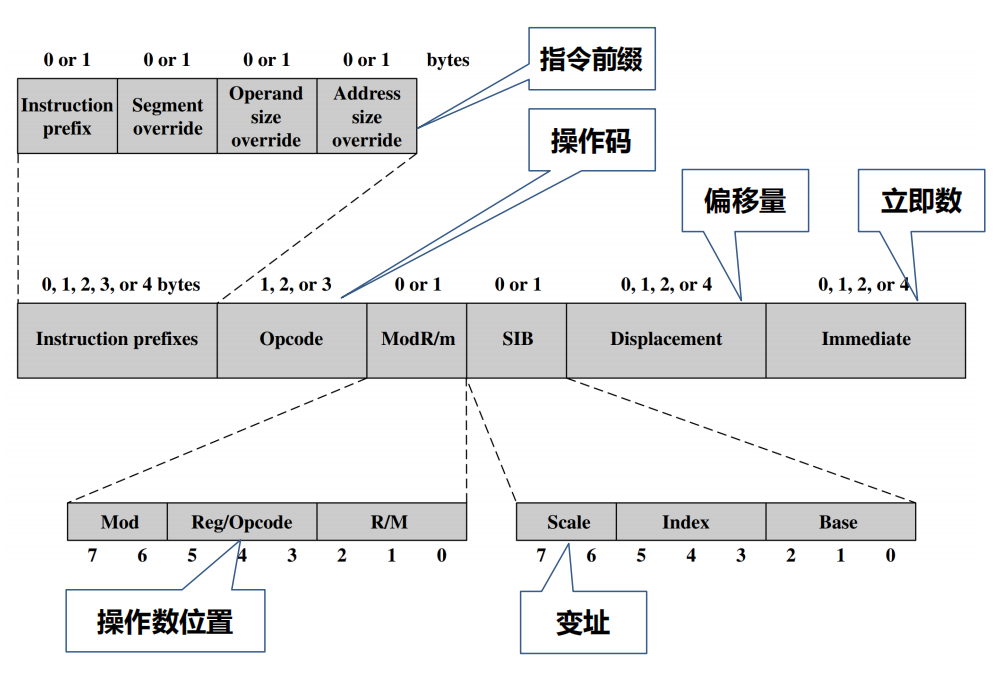

x86 instruction format

Characteristic

• Addressing mode is associated with the instruction opcode

• An instruction has only one addressing mode

• Only one memory operand can be referenced in an instruction

• Typical CISC architecture，use complex instruction format

  • X86 needs to consider downward compatibility

  • Hope to provide richer instructions for compiler developers

ARM instruction formats

• Typical RISC architecture

• All the instructions are 32 bits, and the format is very neat

• ARM instructions are divided into four categories

  • data processing instructions

  • load / save instructions

  • overload / save instructions

  • branch instructions

• All instructions are conditionally executed

Condition code

• All instructions are conditionally executed

• The instruction contains a 4-bit condition code, which is in the highest 4-bit of the instruction

• Except for the condition flags 1110 and 1111, all other instructions must meet the conditions before they can be executed

• The condition code includes four condition flags, which are stored in the program status register

• The four condition flags are N negative flag, Z zero flag, C carry flag, V overflow flag

• For all arithmetic or logic instructions, an S bit is given to indicate whether the instruction modifies the condition flag bit

Data processing

• 数据处理指令类型为000或001。操作码都是4位，s表示是否修改条件标志位。指令中都有三个操作数

• 第一种格式中，目的寄存器Rd，第一个操作数寄存器Rn和第二个操作数寄存器Rm，操作数可以根据shift的标志进行移位，shift amount指明移动多少位

• 第二种格式跟第一种类似，只是移位的位数不是立即数，而是由寄存器Rs来确定

• 第三种格式中，第二操作数是一个立即数，并且可以针对立即数进行循环右移，循环右移的次数由rotate域中的值决定

Load/Store

• 加载/保存指令中，指令一般类型为010和011。后面5位标识了寻址模式、数据类型，是字节还是字，以及加载和保存标志。

• 第一种加载/保存指令是立即数偏移指令，指令中给出了12位的偏移量。内存地址就是基址寄存器Rn加上或减去立即数偏移量。

• 第二种指令是寄存器偏移。偏移量在Rm寄存器中，通过shift确定移位操作，移动shift amount位之后得到，然后再和基址寄存器Rn计算，得到内存地址。

• 多载/多存指令中，指令一般类型为100。指令中给了16位的寄存器列表，内存地址在Rn中，是先递增，先递减，还是后递增，后递减，由寻址模式来决定

Branch

• 分支指令的指令一般类型为101，提供了一个24位的立即数
• 还有一个标志位L，这个标志位决定返回地址是否保存在连接寄存器，也就是link register中。

ARM immediate constants

• 数据处理指令中，立即数占了8位，同时还规定了一个循环移位的值。这样设计的目的是为了获得取值范围较大的数

• 通过循环移位，可以将立即数的范围从8位最多扩展到32位

Thumb instruction set

• Special Usage: use 16 bit instructions to implement most of 32-bit instructions

• In an embedded system, there may only be a 16 bit bus

• Thumb instruction set: Re-encoded subset of ARM instruction set

• Increases performance in 16-bit or less data bus

• Need to reduce 16 bits in the instruction

• Unconditional (4 bits saved)

• Always update conditional flags

  • Update flag not used (1 bit saved)

• Subset of instructions

  • 2 bit opcode, 3 bit type field (2 bit saved)

  • Reduced operand specifications (9 bits saved)

• 压缩指令集的16位指令可以扩展到32位的标准指令

  • 压缩的指令集只有16位，可以在配置较低的硬件上执行

  • 如果在标准的ARM处理器上执行，可以按照这个图上的方法，扩充到32位之后进行执行

• ARM处理器能够执行16位和32位的指令，并且能够两种格式混合执行

• 处理器中的控制寄存器中的1位用来确定当前的执行是16位的指令还是32位的指令
