Computer Organization and Architecture

Processor Structure and Function

Outline

• Processor Organization

• Register Organization

• Instruction Cycle

• Instruction Pipelining

Processor Organization

• A CPU must be able to

  • Fetch instruction from memory

  • Decode the instruction to determine what action to do

  • Fetch data

  • Process data

  • Write data

• CPU必须要能够暂时保存一些数据，以对数据进行处理

• CPU需要记住下一个指令的位置，这样才能在当前指令执行完成之后，能到找到下一个指令

• 处理过程中需要能够保存指令和数据

• CPU包括ALU，CU，还需要有一组存储部件——寄存器

• CPU通过一组系统总线和计算机的其他部件进行连接。系统总线包括控制总线、数据总线和地址总线

• CPU的内部总线把ALU、寄存器和CU连在一起，完成数据在寄存器和ALU的传送

• 控制单元对寄存器、内部总线和ALU进行控制，控制各个部件按照指令要求完成相应的处理

• 在ALU内部，还包括各种更小的组件，例如状态标志，移位器，求补器，以及算术和布尔逻辑等

Register Organization

• CPU must have some working space (temporary storage)

  • Called registers

• Number and function vary between processor designs

• One of the major design decisions

• Top level of memory hierarchy

---

• Registers in the CPU Including two types

  • User-visible registers

  • Reduce access to main memory and improve instruction processing efficiency by optimizing the use of registers

• Control and status registers

  • Used by control unit

  • Control the operation of the CPU and the execution of the program by the privileged operating system

User-visible registers

• User visible registers can be divided into four categories according to its purpose

  • General purpose: assigned to various purposes

  • Data: for data retention only

  • Address: used for some addressing mode

  • Condition codes: also called flag register, it stores some flags of operation results

General purpose registers

• True general purpose

  • Registers and opcodes are orthogonal in the instruction set
  • Registers can be arbitrarily matched with opcodes

• Restricted general registers

  • Specially used for floating point number or stack operation

• In some cases, general registers can be used for addressing

  • Register indirect addressing
  • Displacement addressing

---

• Data register

  • It can only be used for store data, not for addressing
  • Accumulator

• Addressing register

  • Used for a specific addressing mode

  • Segment pointer

  • Index register

  • Stack pointer

---

General or Specialized

• Whether registers are general or special affects the design of instruction sets

• Specialized

  • Opcode can implicitly use a register group or a register

  • Smaller instructions

  • Less flexibility

• General purpose

  • Increase flexibility and programmer options

  • Increase instruction size & complexity

• More registers require more bits to specify registers in instructions

• Fewer registers require more memory access

• Too many registers does not reduce memory references remarkably and takes up processor real estate

  • Between 8-32 is appropriate

• Using register files with RISC makes use of using more registers

---

• Address register: large enough to hold full address

• Data address: large enough to hold full word

• Sometimes combine two data registers to hold double length data

  • In C language, there is a double integer and a long integer, both of which are two words long

---

Condition code registers

• Also called flag registers, some of which are visible to users

• After operating,CPU set the condition bit according to the result

  • After arithmetic operation, positive, negative, zero or overflow may occur

  • These conditions will be set in

• Programs are allowed to read the condition code and perform

• Condition code cannot be modified by the program

---

Control & status registers

• Four registers are essential to instruction execution

  • Program Counter (PC)

  • Instruction Register (IR)

  • Memory Address Register (MAR)

  • Memory Buffer Register (MBR)

• Not all processors have MAR and MBR. However, the system still needs registers similar to these two registers

---

Program status word

• The PSW contains status information

• The flags include

  • Sign, zero, carry, equal, overflow

  • interrupt enable/disable

  • Supervisor: indicates whether the CPU is executing in supervisor or user mode

• Supervisor mode

  • Not available to user programs

  • Used by operating system(System call)

  • Certain privileged instructions can be executed only in supervisor mode

---

Other status and control registers

• Other additional status and control registers

  • Pointer register to process control block

  • Interrupt vector register in vector interrupt computer

  • System stack pointer

  • Page table pointer register in virtual memory

  • I/O operation related registers

• Control and status registers design elements

  • Need to support the operating system
  • Storage location in registers and memory

Instruction Cycle

• Instruction cycle includes fetching cycle and execution cycle

• In execution cycle, first decode to get the operation type of the instruction

• If instruction has operands, get the operand specifier in the instruction

  • Immediate

  • Register

  • Direct addressing: memory access once

  • Indirect addressing: may requires more memory accesses

    • Also called “indirect cycle”

---

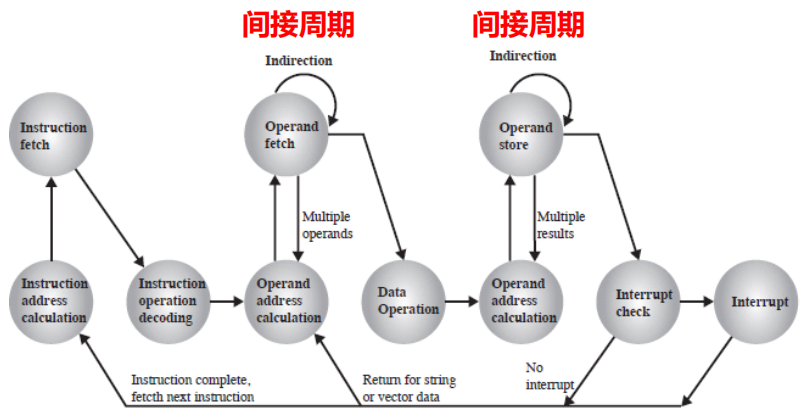

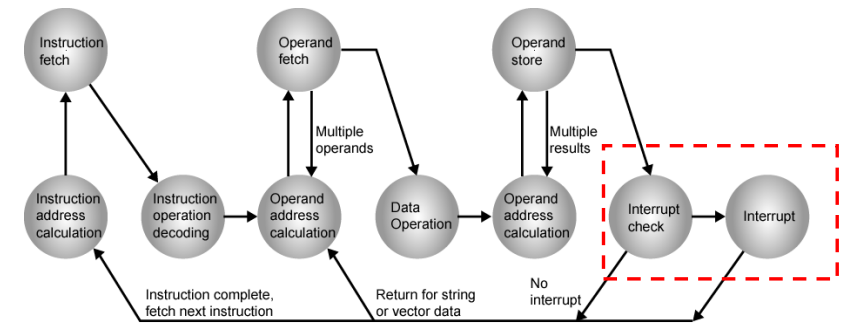

Instruction cycle with indirect

• 指令周期包括取指周期和执行周期，还可能包括间接周期和中断周期

• 取指后，通过译码确定是否包含需要间接寻址的操作数，如果有，进入间接周期

• 当前指令执行完成之后，检查是否有中断。如果有，进入中断周期

• 指令周期中，先取指，然后进行指令操作译码

• 如果涉及到操作数，进行操作数地址计算，然后取操作数

• 之后进行数据操作。操作结果如果要保存到存储器中，需要计算操作数的地址，然后保存

• 在这条指令执行完成之后，检测是否有中断。如果没有中断，继续执行下一条指令。如果有中断，就按照中断的处理规则，进行中断处理

• 间接寻址过程中，由于操作数地址需要通过计算得到，所以在取操作数的过程中，可能会存在多次访问存储器的情况

• 取操作数和存结果的过程中，都可能会存在间接周期

---

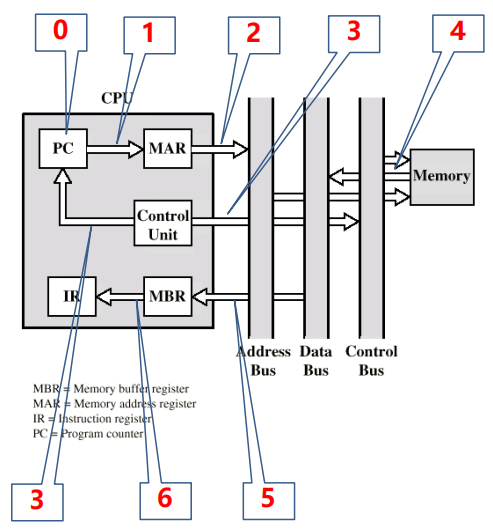

Data flow (instruction fetch)

• Depends on CPU design

• Fetch inn general

  • PC contains address of next instruction

  • Address moved to MAR

  • Address placed on address bus

  • Control unit requests memory read

  • Result placed on data bus, copied to MBR, then to IR

  • Meanwhile PC incremented by 1

• 刚开始，下一个地址在PC中

• 地址给MAR

• 地址放到数据总线上

• 控制单元发起读控制

• 存储器把数据，也就是指令内容，放到数据总线上

• MBR读取数据总线内容，然后把指令给IR

• 控制单元还需要让PC+1，指向下一个指令

---

• IR is examined

• If there is no indirect addressing, enter the execution cycle

• If indirect addressing, indirect cycle is performed

  • Rightmost N bits of MBR transferred to MAR

  • Control unit requests memory read

  • Result (address of operand) moved to MBR

---

Data flow (execute)

• May take many forms

• Depends on instruction being executed

• May include

  • Memory read/write

  • Input/Output

  • Register transfers

  • ALU operations

---

Data flow (interrupt)

• Simple and predictable

• Current PC saved to allow resumption after interrupt

  • Contents of PC copied to MBR

  • Special memory location (e.g. stack pointer) loaded to MAR

  • MBR written to memory

• PC loaded with address of interrupt handling routine

• Interrupt handler first instruction fetched

Instruction Pipelining

Why need pipeline?

• Development of computer application requires continuous improvement of processing capacity

• The development of integrated circuit, clock frequency, registers, cache, etc. have reduced the instruction processing time and improved the processing ability

• More and more difficult to solve problems by simply relying on the performance of hardware

• The goal is the execution efficiency of instructions

• Better organization is needed to improve the efficiency of instruction execution

---

What is pipeline? ！ ！ ！

• The working mode of factory assembly line is used for reference

  • Divide the execution of instructions into several stages

  • Different stages of multiple instructions can be processed in parallel

• Although execution time of each instruction is not shortened, the execution time of a group of instructions is shortened due to the parallel method

• This is the basic idea of instruction pipeline

Prefetch

• Before pipelining, next instruction is taken after current instruction is executed

• With pipelining, more than one instruction in different stages of the pipeline

• How to get instructions is a problem

  • Fetch accessing main memory

  • Execution usually does not access memory

  • Fetch next instruction during execution of current instruction

• Called instruction prefetch

---

Advantage

• During execution of an instruction, a new instruction has entered the pipeline

• After current instruction is executed, it can be executed immediately

  • Next instruction has finished fetching

  • Save time for fetching

• Accessing memory is required for fetching

  • If cache hits, take it directly

  • If cache missing, access memory

• In fact, the instruction cycle is divided into more detailed stages, more pipeline stages, and more overlapping and efficient instruction execution stages

---

Which instruction is Prefetched?

• Which instruction is appropriate for prefetching?

• Next instruction of the current instruction?

  • If it is executed sequentially, no problem

  • If there is a transition, the next instruction needs to be determined according to the conditions

  • Hard to predict

• Does a misprediction in prefetching affect correctness?

  • No, prefetched data at a “mis-predicted” address is simply not used

  • There is no need for state recovery

---

Basics characteristics

• In modern systems, prefetching is usually done in cache block granularity

• Prefetching is a technique that can reduce both

  • Miss rate

  • Miss latency

• Prefetching can be done by

  • Hardware
  • Compiler
  • Programmer

Prefetching: the four questions

• What

  • What addresses to prefetch

• When

  • When to initiate a prefetch request

• Where

  • Where to place the prefetched data

• How

  • Software, hardware, execution-based, cooperative

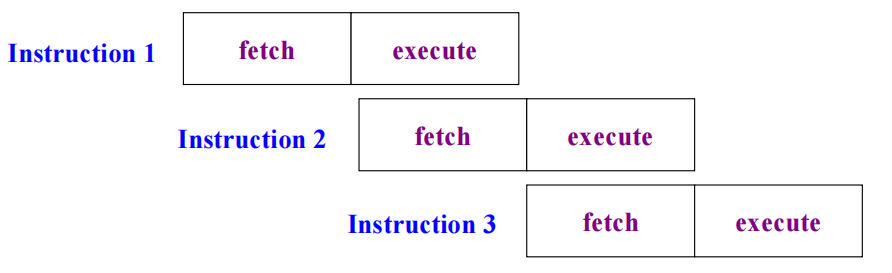

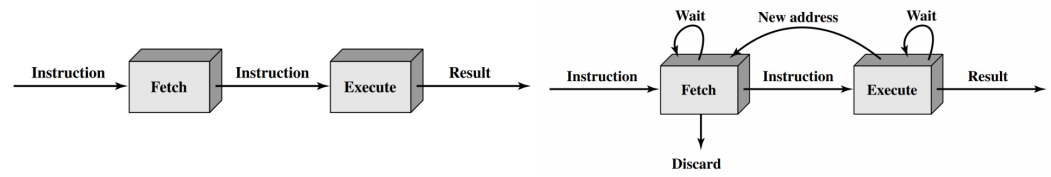

Two stage instruction pipeline

• 简单的指令过程就是串行处理，取指-执行-取指-执行，效率低

• 采用两阶段流水线后，在当前指令的执行过程中，进行下一个指令的取指

• 如果当前指令执行完成后，下一个指令不是预取的，需要重新取指

• 取指和执行指令的时间重叠，节省了时间

• 但是由于取指和执行指令的时间需要不一样，所以执行速度不能翻倍

• 两阶段流水线的执行过程

• 上一条指令的执行阶段和下一条指令的取指阶段在时间上是重叠的

• 每个指令的总体执行时间没有缩短，部指令的执行时间缩短了

• 如果取指和执行时间相同，那么流水线的执行时间是串行执行的一半，性能提升一倍

Improved performance

• But not doubled

  • Fetch usually shorter than execution

  • Instruction execution process is complex and time-consuming

  • Execution time determines the improvement effect

• Jump or branch instruction

  • means that prefetched instructions are not the required instructions

  • Get the actual instructions according to the results

• Add more stages to improve performance

improve concurrency

• Goal: More concurrency → Higher instruction throughput

• Method: When an instruction is using some resources in its processing phase, process other instructions on idle resources

  • Fetch next instruction when an instruction is being decoded

  • Decode an instruction when an instruction is being executed

  • Execute the next instruction when current instruction is accessing memory

  • When an instruction is writing its result into the register file, access data memory for the next instruction

Summary

• Analogy: “Assembly line processing” of instructions

• Pipeline the execution of multiple instructions

  • Divide the instruction processing cycle into distinct “stages” of processing

  • Ensure there are enough hardware resources to process one instruction in each stage

  • Process a different instruction in each stage

  • Instructions are executed in the order of program

• Benefit: Increases instruction processing throughput

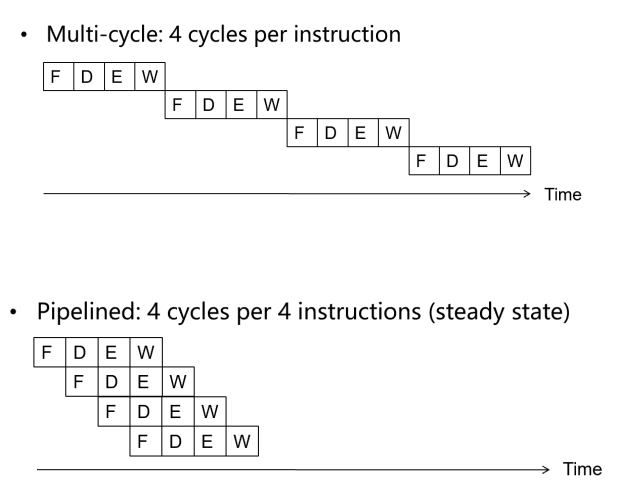

• 加法指令流水线

• 整个指令分为4个阶段：取指，译码，执行，写结果，均为t

• 采用4阶段流水线，每个阶段完全独立，n个指令，需要$nt+3t$的时间

• 基本上是$\frac {1}{4}$的时间

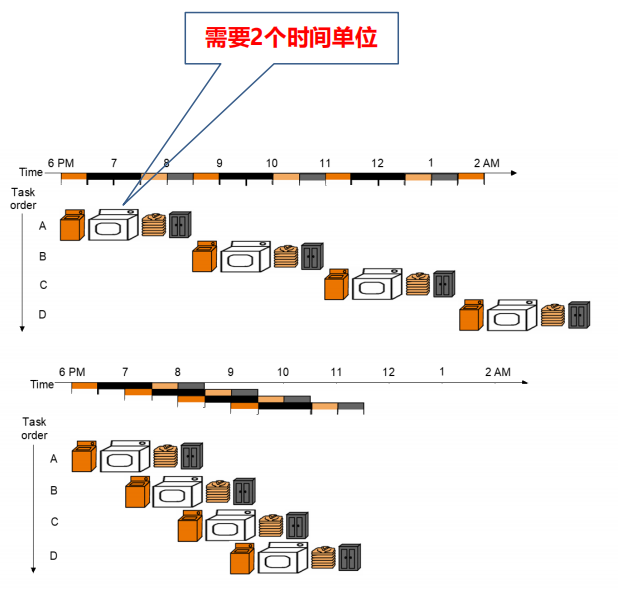

In practice

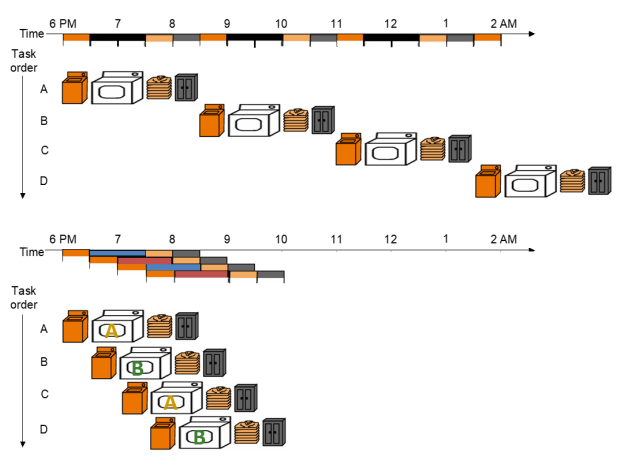

• 烘干衣服需要2个时间单位，这样，如果完全串行，需要20个时间单位

• 采用流水线后，有等待烘干机的时间

• 4件衣服需要11个时间单位

• 理论上的速度为非流水线的$2.5$倍

• 最慢的步骤决定了整个系统的吞吐量

How

• 烘干机成为整个系统的瓶颈

• 补充资源，配置2个烘干机

• 下一个衣服洗完后，不需要等待上一个衣服的烘干，用另一台烘干机

• 关键环节增加资源，使得整个吞吐量回到之前的情况

• 代价就是配置额外的资源

Goal

• Increase instruction throughput with little increase in cost

  • Process instructions in the order required by the program

  • Hardware cost cannot be increased too much

  • Instruction throughput can be greatly increased

An ideal pipeline

• Repetition of identical operations

  • Same operation, different operation objects

  • Automobiles of the same model can be produced on one assembly line

  • Different operations require different steps, which affects the operation of the pipeline

  • The production of automobiles and motorcycles requires different steps and cannot be put on the same assembly line

---

• Operating objects are independent of each other

  • There is no dependency between each operation object

  • For example, there is no relationship between cars produced on the assembly line

  • Operating objects with sequential dependencies affect each other during parallel operations

---

• A complete operation can be decomposed into several sub operations

  • Each sub operation takes the same time

  • Each sub operation requires independent resources and does not share resources

  • If sub operation requires different time, some sub operations must wait

  • Resource sharing leads to resource contention

---

• For the pipeline design of instructions, we divide the execution of instructions into six stages

  • Fetch instruction(FI)

  • Decode instruction(DI)

  • Calculate operands(CO)

  • Fetch operands(FO)

  • Execute instructions(EI)

  • Write result(WO)

• Overlap these operations

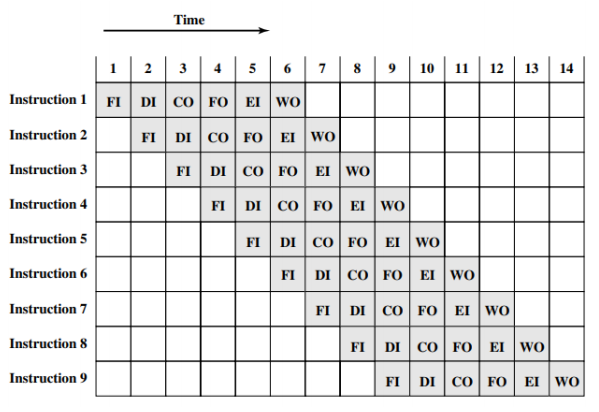

Timing of pipeline

• 理想的指令流水线的执行过程

• 指令执行分为6个阶段，相互之间不共享资源

• 按照流水线的方式来执行，从第六个时间单位开始，每个时间单位都会有1个指令完成执行

• 指令数量足够多时，执行效率为原来的6倍

Summary

• The total execution time for each individual instruction is not changed by pipelining

  • It still takes an instruction cycle to make it all the way through the processor

• Pipelining doesn’t speed up instruction execution time

• It does speed up program execution time by increasing the number of instructions finished per unit time

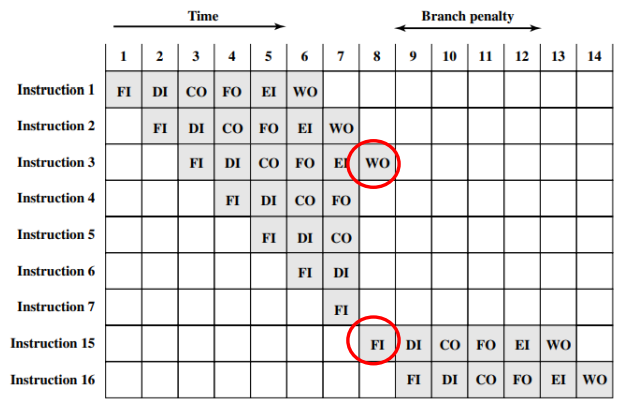

Branch in a pipeline

• 指令1和2的执行都是正常的

• 指令3在时间片8时，需要跳转到指令15的执行

• 指令4-7已经完成的处理作废

• 需要重新开始指令15的取指

• 第9到第12时间片，没有指令完成执行，称为分支惩罚

• 分支越多，分支惩罚就越多，整个程序的指令吞吐率就越低

---

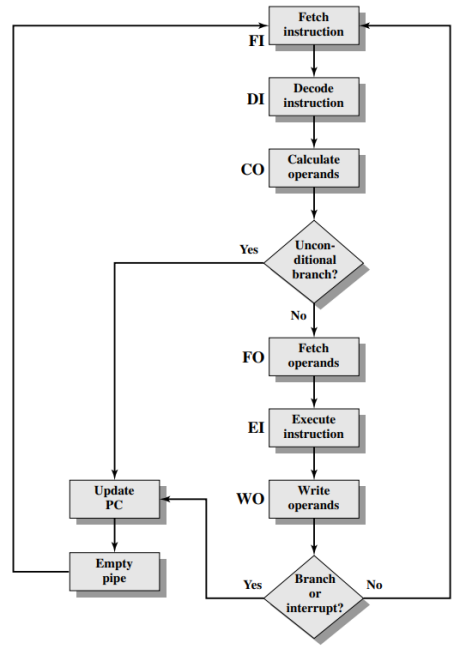

Six stage instruction pipeline

• 第一步是取指，之后是指令译码，并计算操作数地址

• 此时，需要判断指令是否是无条件转移，如果是，那么更新PC，并清空流水线，继续开始取指

• 如果不转移，正常执行指令，取操作数，然后执行指令，并写操作数

• 判断是否进行分支，或者是否有中断。如果是，那么和无条件分支一样，更改PC，清空流水线，继续往下执行后续指令

Other factors

• Data transmission between different parts takes time

• Theoretically, the more stages, the higher the efficiency of instruction execution

  • The more stages are divided, the more complex the control between stages will be

  • Latching delay, buffering between phases takes a certain time

  • Need reasonable design

---

Speedup factors with instruction pipelining

• 假定总共需要执行n条指令，采用的流水线段数为k，那么使用指令流水线相对于不使用流水线的加速比的定义是

$$ S_k=\frac {nk}{k+n-1} $$

• 随着指令数的增加，加速比趋向于流水线的阶段

• 指令数越多，加速比越接近理论上的加速比。而随着段数的增加，加速比增加缓慢

• 流水线段数能带来更好的潜在加速比，但同时也带来很多问题。比如分支时需要清空流水线，段间延时也需要考虑

Analysis of instruction pipeline

• What are the characteristics of an ideal pipeline?

  • Repetition of identical operations

  • Operating objects are independent of each other

  • A complete operation can be decomposed into several sub operations

---

Identical operations … NOT!

• different instructions → not all need the same stages

• Forcing different instructions to go through the same pipe stages

• Some pipeline stages are idle

• Leading to a waste of time, called external fragmentation

---

Independent operations … NOT!

• instructions are not independent of each other

• Need to detect and resolve inter-instruction dependencies to ensure the pipeline provides correct results

• Pipeline stalls frequently due to branch

• Poor operation of the pipeline

---

Uniform sub-operations … NOT!

• different pipeline stages → not the same latency

• Need to force each stage to be controlled by the same clock

• Some pipe stages are too fast but all take the same clock cycle time

• These wasted time are called internal fragmentation

---

Issues in pipeline design

• Reasonably divide the stages of instructions

  • How many stages is the instruction cycle divided into?

  • what is done in each stage

• Handling exceptions, interrupts

• Keeping the pipeline correct, moving, and full

  • Data dependences

  • Control dependences

  • Resource conflict

  • Long-latency (or multi-cycle) operations

---

Causes of pipeline stalls

• Pipeline stall: A condition when the pipeline stops moving

• Causes of stall

  • Resource contention
  • Dependences between instructions, including data dependence and control dependence
  • Long-latency (multi-cycle) operations

---

Dependences and Their Types

• Also called “hazard” or “pipeline bubble”

• Dependences dictate ordering requirements between instructions

• Two types

  • Data dependence

  • Control dependence

• Resource contention is sometimes called resource dependence

• When dependency occurs, the pipeline will be suspended, which is called pipeline adventure

Resource hazards

• Two (or more) instructions in pipeline need same resource

  • Executed in serial rather than parallel for part of pipeline

  • Also called structural hazard

• It is caused by unreasonable structure or insufficient resources

  • Such as using the same register

• The solution is generally to increase available resources, such as adding a dryer in the previous example

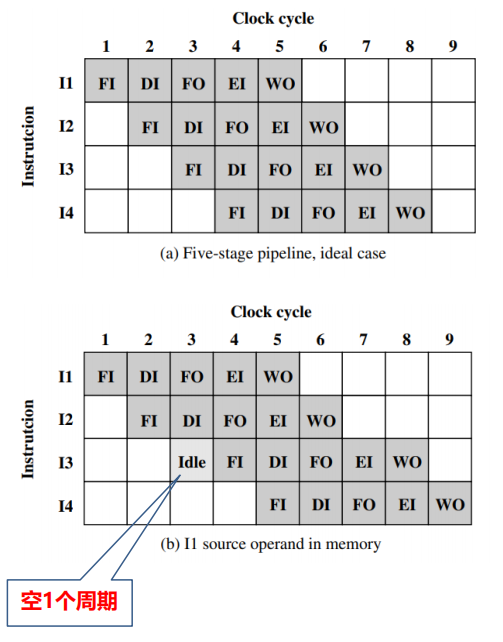

Example

• 第3个时钟周期，$I_1$需要读取内存取操作数，同时$I_3$也需要取指

• 两个指令读需要读存储器，发生资源冲突

• $I_3$需要空一个时钟周期，等到第4个时钟周期的时候，才去取指

• 因为资源冲突而浪费了1个时钟周期

• 如果只有一个$ALU$，执行指令也可能会冲突

Handling resource contention

• Solution 1: Eliminate the cause of contention

  • Duplicate the resource or increase its throughput

  • E.g., use separate instruction and data memories (caches)

  • E.g., use multiple ports for memory structures

• Solution 2: Detect the resource contention and stall one

  • Need to decide which one to stop

Data hazards

• Conflict in access of an operand

  • E.g. ,both instructions access a particular memory or register operand

• If two instructions are executed serially in strict order, that is one instruction executes after the finish of the previous instruction execution. No problem

• If in a pipeline, operand value could be updated so as to produce different result from strict sequential execution

• Data Hazard is caused by the conflict of access to the same operand location

---

Types of data hazard

• Types of data dependences：

  • read after write

    • Called “True dependence ”

  • write after read

    • Called “Anti dependence ”

  • write after write

    • Called “Output dependence”

True dependency

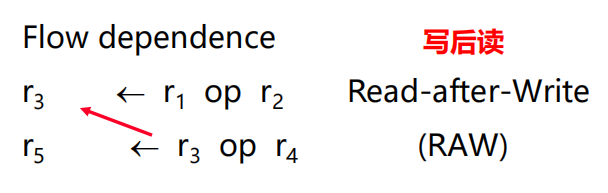

• Read after write (RAW), or true dependency

  • An instruction modifies a register or memory location

  • Succeeding instruction reads data in that location

  • Hazard occurs if read takes place before write complete

  • What needs to be read by succeeding instruction is the modified data

  • After the pipeline is adopted, the read data becomes the data before writing

• 第一个指令需要写$r_3$

• 第二个指令需要读$r_3$

• 第二个指令必须要等第一个指令执行完成之后并写了$r_3$，才能完成读操作数的指令，否则读取的$r_3$不是需要的数

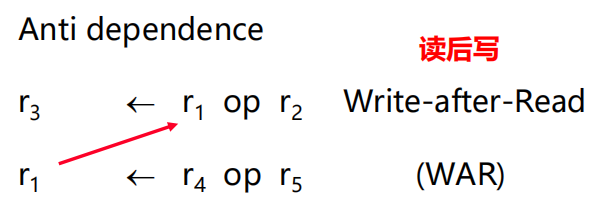

Anti dependence

• Write after read (WAR), or anti-dependency

• An instruction reads a register or memory location

• Succeeding instruction writes to location

• Hazard occur if write completes before read takes place

• The data of the first instruction read operation is incorrect

• 第一个指令读$r_1$

• 第二个指令写$r_1$

• 如果先执行了第二个指令，那么结果也不正确

• 在超标量中会出现这种情况

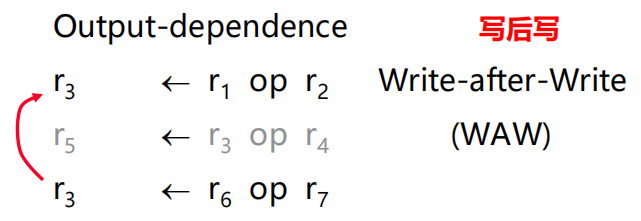

Output dependence

• Write after write (WAW), or output dependency

  • Two instructions both write to same location

  • Hazard if writes take place in reverse of order intended sequence

  • The data to be stored is the data written by the second instruction

  • In the pipeline, the data actually saved is the data written by the first instruction

  • Data of memory or register is not required

• 第一个执行写$r_3$

• 第三个指令也写$r_3$

• 如果第三个指令先执行了，也结果不正确

• 在超标量中会出现这种情况

How?

• True dependences always need to be obeyed because they constitute true dependence on a value

• True dependences always need to be obeyed because they constitute true dependence on a value

• Anti and output dependences exist due to limited number of architectural registers

  • They are dependence on a name, not a value

• Without special hardware and specific avoidance algorithms, results in inefficient pipeline usage

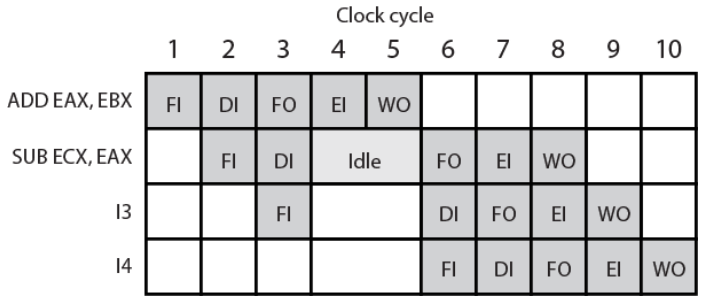

• 在第五个时钟周期，加法指令写EAX

• 第四个时钟周期，减法要用EAX

• 如果第二个指令不等待，那取的EAX还是最早的EAX，不是加法的结果

• 所以减法指令需要停顿2个时钟周期，到第六个时钟周期才会去取操作数

• 浪费了2个时钟周期

Method of handle

• True dependences are more interesting

  • Actual interdependence between data，requires waiting

• Anti and output dependences are easier to handle

  • It’s all about writing

  • Use more registers

  • Use different registers to eliminate possible correlation

• Some fundamental ways of handling true dependences

  • Detect and wait until value is available in register file

  • Detect and eliminate the dependence at the software level

    • Register renaming

    • Discussed later

  • Predict the needed value(s), execute “speculatively”, and verify

Control dependence

• Also called “control hazard”“branch hazard”

• A Special Case of Data Dependence

• Occurs when the pipeline makes a wrong judgment on branch transfer

• Brings instructions into pipeline that must subsequently be discarded

• The pipeline cannot run with full load

solve

• Multiple Streams

• Prefetch Branch Target

• Loop buffer

• Branch prediction

• Delayed branching

Multiple streams

• Have two pipelines for each branch

  • Prefetch each branch into a separate pipeline

• Finally, determine which pipeline to use according to the branching conditions

• Shortcoming

  • Leads to bus & register contention

  • Multiple branches lead to further pipelines being needed

Prefetch branch target

• Target of branch is prefetched in addition to instructions following branch
• It is not executed after prefetching, but fetching and decoding
• Keep target until branch is executed
• It can save the time of fetching and decoding
• Used by IBM 360/91

Loop buffer

• Very fast memory

• Contains n instructions taken in the most recent order

• When a branch may occur, first check whether the transfer target is in the buffer

• Very good for small loops or jumps

Branch prediction

• There are two types of branch predictions

  • Static branch predictions: the branch does not depend on the execution history

  • Dynamic branch prediction: the branch depends on the execution history

• Static branching

  • Predict never taken

  • Predict always taken

  • Predict by Opcode

• Dynamic branching

  • Taken/not taken switch

  • Branch history table

---

Static branch prediction

• Predict never taken

  • Assume that jump will not happen

  • Always fetch next instruction

  • 68020 & VAX 11/780

• Predict always taken

  • Assume that jump will happen

  • Always fetch target instruction

• “Predict always taken ” are most used

• Predict by Opcode

  • Some instructions are more likely to result in a jump than others

  • Can get up to 75% success

---

Dynamic branch prediction

• Record the history of conditional branch instructions in a program

• Taken/not taken switch: One or more bits are used to indicate recent history of the instruction

  • The branching decision is depended on these bits

  • Based on previous history

  • Good for loops

---

Branch history table

• If Predict branch，target address can only be obtained by decoding instructions

  • A waiting time is required

  • How to improve efficiency?

• A storage area called branch target buffer is designed

  • Also called branch history table

  • It records information related to branch transfer, including branch instruction address, transfer history bit, and target address information

• Target address information

  • Can be target instruction

    • Use this instruction directly

    • Less time

    • It will take up more space

  • Can be the target instruction address

    • Less space

    • More time

  • Whether to save time or space depends on the specific situation

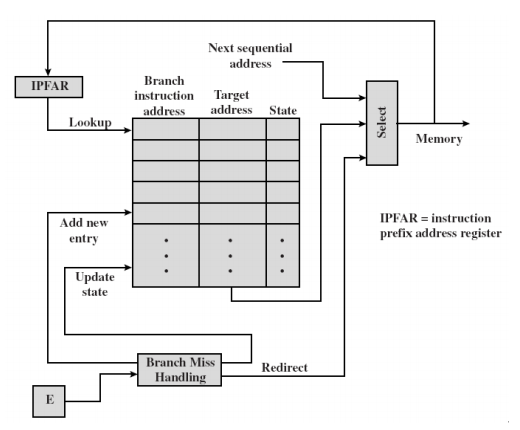

Branch history table

• 预测转移后，指令预取的时候，先去转移历史表中查询

  • 如果有的话，根据指令状态进行预测，可能是目标地址，或者是下一顺序地址

  • 如果不匹配，顺序取下一个指令

• 分支指令执行时，根据实际是否发生了转移，更新转移历史表中的状态位

• 如果条件分支指令不在表中的时候，需要把指令加到这个表中，同时需要替换到当前表中的一项。替换方法可以采用很多种方法，类似于cache的替换策略

• 转移历史表动态自动维护

---

Correlation-based prediction

• The execution effect of the branch history table in the loop statement is good

• In more complex structures, branch instruction directly correlates with that of related branches instruction

• A method called Correlation-based branch history is proposed

  • Create a global branch history table
  • Predict by combining global and current branch instructions

---

Delayed Branch

• A method of instruction rearrangement

• Delayed branches need to calculate the impact of branches and determine which instructions are not affected before prefetching unwanted instructions

  • Execute such an instruction immediately after the branch instruction

  • The execution of this instruction keeps the pipeline in a full rotation state, and the clock cycle will not be wasted due to waiting
