Computer Organization and Architecture

Top Level View of Computer Function and Interconnection

Review

• What are the factors that directly affect computer performance?

  • The running speed of the processor

  • The organization and architecture of chip

  • Balance between the individual components

---

• The meaning of Amdahl's law
  • The parallel execution ability of the program is the key factor affecting the acceleration ratio of the multi-core processor

Outline

• Key Terms

• Computer Components

• Computer Function

• Interconnection Structures

• Bus Interconnection

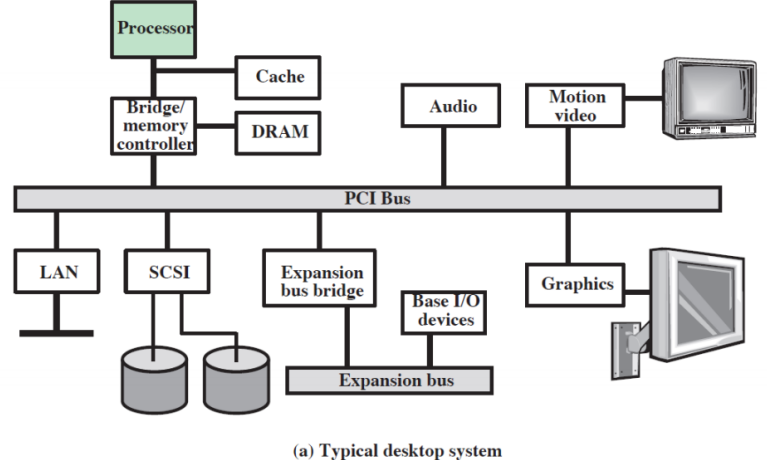

• PCI Bus

Key terms

• PC: Program counter

• IR: Instruction register

• MAR: Memory address register

• MBR: Memory buffer register

• I/O AR: I/O address register

• I/O BR: I/O buffer register

• AC: Accumulator

Computer Components

Program Concept

• Logical units have certain functions

  • And

  • Or

  • Not

• Multiple logical units are connected to complete certain functions

  • Hardwired systems

  • To complete another calculation, logical units need to be reconfigured

  • Inflexible

---

What is program

• Construct a general purpose hardware with arithmetic and logic functions

  • Can do different tasks, given correct control signals

  • For a new task, instead of re-wiring, supply a new set of control signals

• Use Program to provide control signals

  • A sequence of steps

  • For each step, an arithmetic or logical operation is done

  • For each operation, a different set of control signals is needed

Function of Control Unit

• For each operation a unique code is provided

  • e.g. ADD, MOVE

• A hardware segment to generate control signal

  • Accepts code and issues control signals

  • Called controller or instruction interpreter

• ALU performs corresponding operations according to the control signal

• Sequence of operations is called software

• We have a computer!

---

• The Control Unit(CU)and the Arithmetic and Logic Unit (ALU) constitute the Central Processing Unit(CPU)

• Data and instructions need to get into the system and results out

  • Input

  • Output

• Temporary storage of code and results is needed

  • Main memory

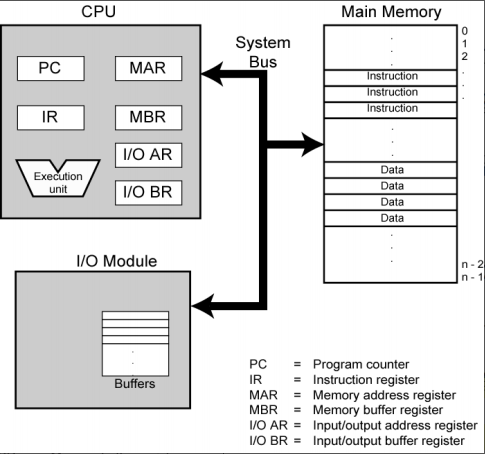

Top Level View

• The computer generally includes the CPU, main memory, $I/O$ module, and System Bus

• $CPU=Control\ Unit+Arithmetic\ and\ Logic\ Unit\newline$

• The main memory includes multiple data storage units, each with one address

• In the $I/O$ module, there is a set of caches for $I/O$ access, for data for temporary storage and $I/O$ interaction

Computer Function

• Instruction Fetch and Execute

  • Execute program

• Interrupts

  • Handling performance differences between CPU and other components

• I/O Function

  • Inter working with peripherals

Instruction Cycle

• The most basic function of a computer is execute program

  • Program consists of instructions

  • Instruction in memory, execution in CPU

• Two steps involved: Fetch $\rightarrow$ Execute

• The processing required for a single instruction is called instruction cycle

  • Fetch cycle
  • Execute cycle

Fetch Cycle

• Program Counter (PC) holds address of next instruction to fetch

• Processor fetches instruction from memory location pointed to by PC

• Increment PC

  • Unless told otherwise

• Instruction loaded into Instruction Register (IR)

• Processor interprets instruction and performs required actions

Execute Cycle

• Processor interprets instruction and performs required actions

• Data processing

  • Some arithmetic or logical operation on data

• Processor-memory

  • data transfer between CPU and main memory

• Processor-I/O

  • Data transfer between CPU and I/O module

• Control

  • Alteration of sequence of operations

  • e.g. jump

• Combination of above

Example: A Hypothetical Machine

• Both instructions and data are 16 bits long

• The instruction format

  • 4 bit opcode

  • 12 bits address

Actions

• Three actions – three instruction cycles

  • Read data from address 940 to AC

  • Add the contents of 941 to AC

  • Store the result to address 941

• Instructions to be used (partial list)

  • 0001 = Load AC from memory

  • 0010 = Store AC to memory

  • 0101 = Add to AC from memory

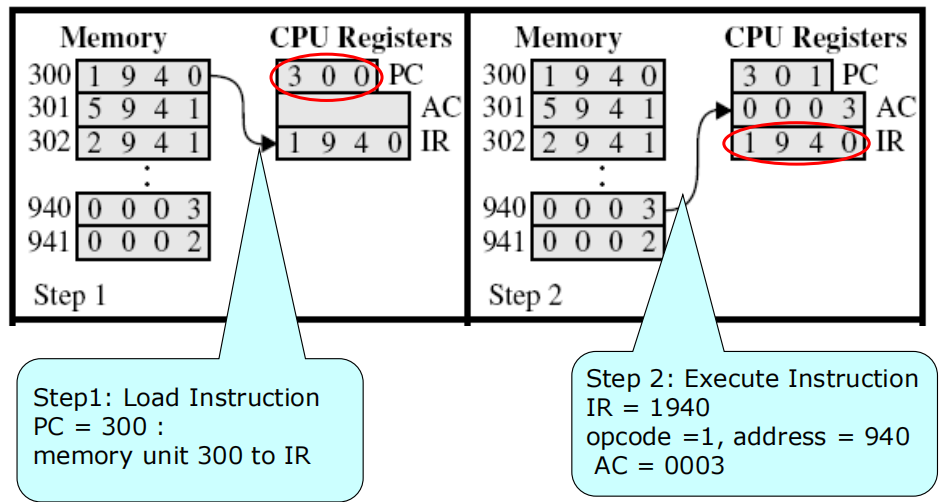

Cycle 1: Read Data From Address 940

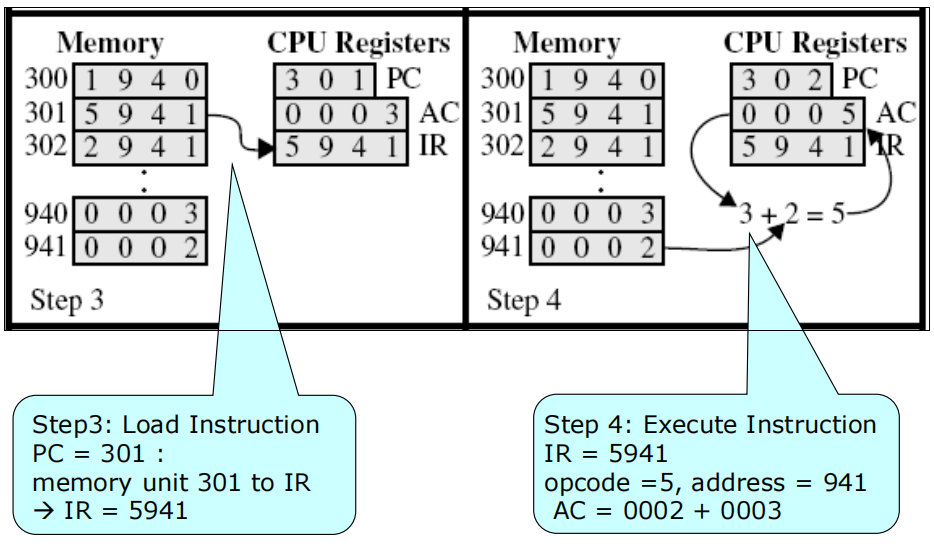

Cycle 2: Adding Data From 941 to AC

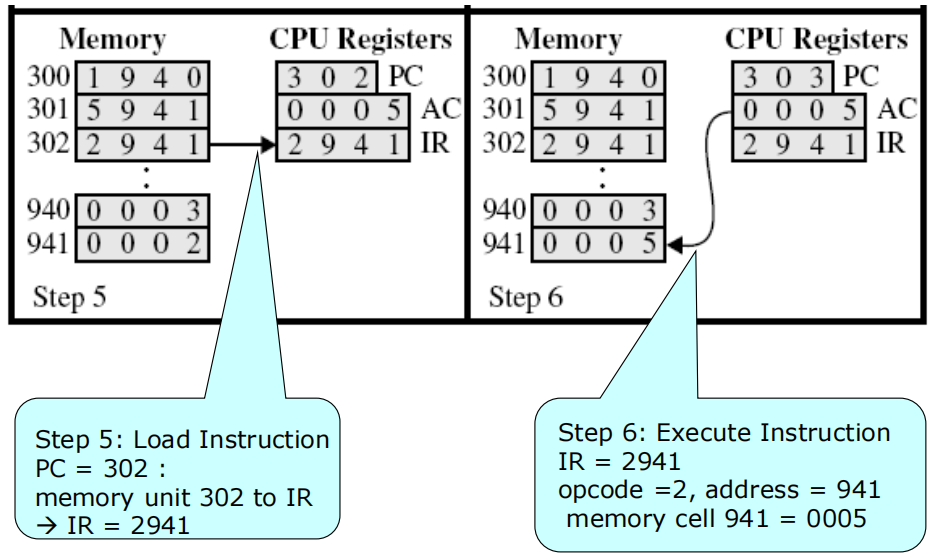

Cycle 3: Writing Data From AC to 941

Conclusion

• In this example, three instruction cycles, each consisting of

  • a fetch cycle
  • an execute cycle

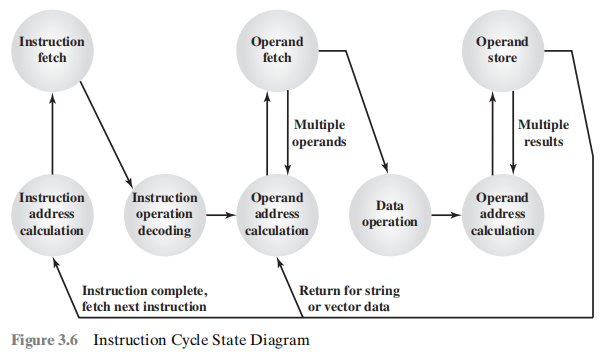

• With a more complex set of instructions, fewer cycles would be needed since

  • Execution cycle may perform more than one reference to memory

  • An instruction may specify I/O operation instead of memory reference

  • An instruction may specify an operation to be performed on a vector of numbers or a string of characters

    • e.g. ADD B, A

Multiple operands and multiple results allowed

Interrupts

• Executing instructions need cooperation of different components

• Execution speed of different components varies greatly

  • e.g. CPU is much faster then printer

• Lots of waste of CPU time

• Interrupt is used to improve CPU utilization

---

• Mechanism by which other modules (e.g. I/O) may interrupt normal sequence of processing

• Program

  • e.g. overflow,division by zero

• Timer

  • Generated by internal processor timer

  • Used in pre-emptive multi-tasking

• I/O

  • from I/O controller

• Hardware failure

  • e.g. memory parity error

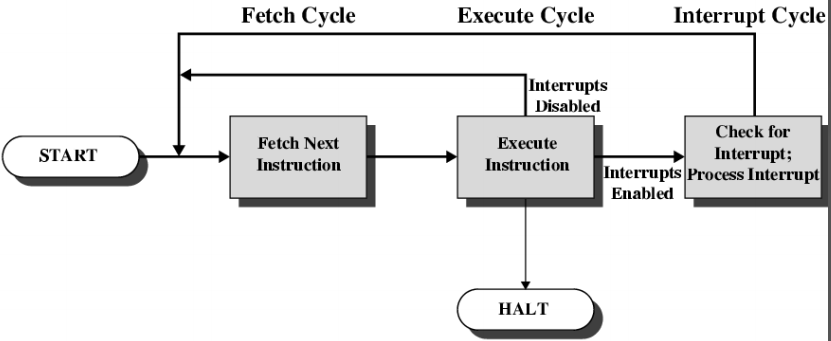

Interrupt Cycle

• Add an interrupt cycle in instruction cycle

  • After the execution of the current instruction is completed，processor checks for interrupt

  • Indicated by an interrupt signal

• If no interrupt, fetch next instruction

• If interrupt pending

  • Suspend execution of current program

  • Save context

  • Set PC to start address of interrupt handler routine

  • Process interrupt

  • Restore context and continue interrupted program

Transfer of Control via Interrupts

• Before the interrupt user program suspend and interrupt processing, after the user program recovery, are done by the processor

• User programs do not need to develop special code to accommodate interruptions

Instruction Cycle with Interrupts

• After the current instruction is executed, check if the interrupt is blocked. If the blocking is interrupted, continue to perform a process of pointing and executing instructions

• If the interrupt allows, you need to detect whether the interrupt occurs and enter the interrupt cycle

• If an interrupt is detected, perform the interrupt processor, otherwise proceed with the next instruction

Program Timing

• The processing power of different I/O devices varies greatly, and for interruptions, short and long interruptions exist

• Short I/O Wait

  • Since the I/O device is not prepared for a long time, the CPU continues to process the user program

  • After the I/O equipment is ready, the interrupt is initiated. The processor is processing, and after processing, continue to process the instructions behind the user program

  • The CPU basically has no waiting state, and the processing efficiency is relatively high

• Long I/O Wait

• The preparation time of I/O equipment is very long. When the processor completes the subsequent operation and needs to conduct I/O operation again, the I/O equipment is not ready yet

• The CPU can only wait for the I/O equipment to be ready and complete the I/O operation before continuing to execute the instructions related to the next write operation

• Because the preparation time of the I/O equipment is too long, and there are I/O operations behind it, so there will be a period of waiting for the CPU

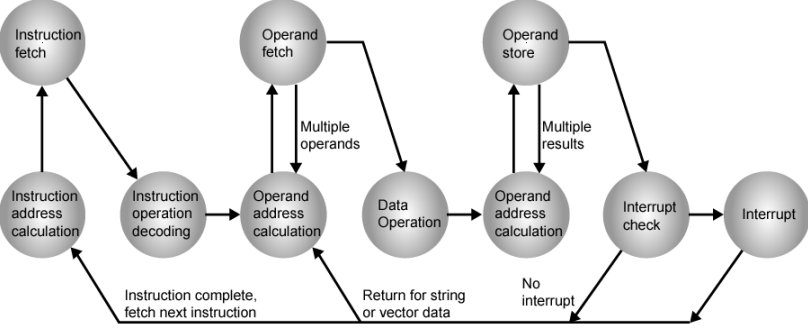

Instruction Cycle (with Interrupts) - State Diagram

Multiple Interrupts

• Ways to handle multiple interrupts: sequential，Nested

Sequential

• when process interrupt, disable other interrupts

• Processor will ignore further interrupts while processing one interrupt

• Interrupts remain pending and are checked after first interrupt has been processed

• Interrupts handled in sequence as they occur

• Interrupts with high priority cannot be handled in time

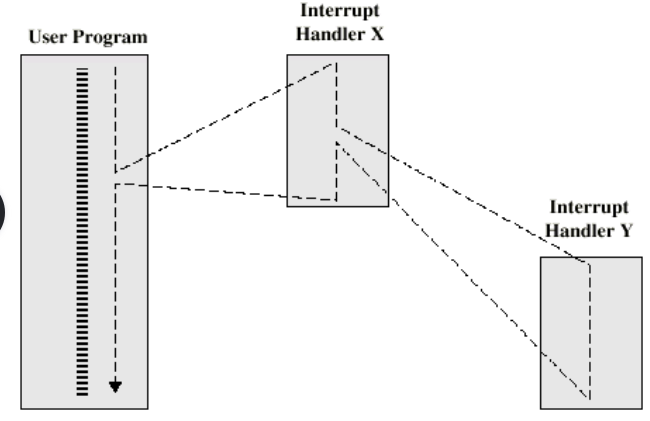

Nested

• Allow interrupt to be interrupted

• Define priorities

  • Low priority interrupts can be interrupted by higher priority interrupts

  • When higher priority interrupt has been processed, processor returns to previous interrupt

  • After the low priority interrupt processing is completed, execute the user program

• Called interrupts-nested

I/O Function

• An I/O module can exchange data directly with the Processor

  • Example: a disk controller

• The processor can also read data from or write data to an I/O module

  • The processor identifies a specific device that is controlled by a particular I/O module

  • Similar in form to memory that could occur

  • I/O instructions rather than memory referencing instructions

---

• In some cases, allow I/O exchanges to occur directly with memory

  • the processor grants to an I/O module the authority to read from or write to memory

  • I/O-memory transfer can occur without tying up the processor

  • relieving the processor of responsibility for the exchange, DMA(direct memory access)

Interconnection Structures

• A computer includes CPU, memory and I/O

• All the units must be connected to execute instructions

• Collection of paths connecting various modules of a computer (CPU, memory, I/O) is called the interconnection structure

Connecting Types

• Types of transfers must be supported by interconnection structure

  • Memory to CPU, CPU to memory

  • I/O to CPU, CPU to I/O

  • I/O to or from memory (Direct Memory Access –DMA)

Memory Connection

• Receives and sends data

• Receives addresses (of locations)

• Receives control signals

  • Read
  • Write
  • Timing

Memory Operation

• Read

  • Input: address, read signal
  • Output: data

• Write

  • Input: address, write signal, data
  • Output: null

Input/Output Connection

• I/O module is located between the CPU and peripherals

• I/O connection is similar to memory from computer’s viewpoint

• Output

  • Receive data from computer(CPU)

  • Send data to peripheral

• Input

  • Receive data from peripheral

  • Send data to computer(CPU)

---

• Receive control signals from computer(CPU)

• Send control signals to peripherals

  • e,g. write disk

• Receive addresses from computer(CPU)

  • e.g. port number to identify peripheral

• Send interrupt signals (for control)

CPU Connection

• Reads instruction and data

• Writes out data (after processing)

• Sends control signals to other units

• Receives and acts on interrupts

Bus Interconnection

• Bus: a communication pathway connecting two or more devices

• Usually broadcast

• Often grouped

  • A number of channels in one bus
  • e.g. 32 bit data bus is 32 separate single bit channels

• Power lines may not be shown

Main points of Bus

• Only one device at a time can successfully transmit with BUS

• A bus consists of multiple communication pathways, or lines

• A bus that connects major computer components (processor, memory, I/O) is called a system bus

Bus Structure! ! !

• Data
• Address
• control lines

Data Bus

• The Data Bus provide a path for moving data between system modules

• Carries data

  • Remember that there is no difference between “data” and “instruction” at this level

• The number of lines being referred to as the width of the data bus

  • Width is a key determinant of performance

  • Capability of data transmission

Address Bus

• Identify the source or destination of data

  • Each memory unit (or each I/O device) is assigned to a unique address

• Bus width determines maximum memory capacity of system

  • e.g. 8080 has 16 bit address bus giving $64k$ address space
  • e.g. one memory unit usually is one byte, $1byte \times 64k\newline$

• If memory is organized in multiple modules

  • Higher-order bits are used to select a particular module on the bus

  • Lower-order bits select a memory location or I/O port within the module

Control Bus

• The control bus controls the use of data and address lines

• Control signals transmit both command and timing information among system modules

• Typical control lines include

  • Memory read/write

  • I/O read/write

  • Transfer ACK. Indicates that data have been accepted from or placed on bus

  • Interrupt request and acknowledge

  • Bus request and acknowledge

  • Clock used to synchronize operations

  • Reset

Operation of bus

• Bus shared by all modules

• If one module wishes to send data to another, it must

  • Obtain use of bus

  • Transfer data via bus

• If one module wishes to request data from another, it must

  • Obtain the use of bus

  • Transfer a request to other module over control and address lines

  • Wait for second module to send data

Problems of single bus

• Single bus structure: permits a number of units to be connected together through a common set of wires

• Lots of devices on one bus leads to

  • Propagation delays

  • Long data paths mean that co-ordination of bus use can adversely affect performance

  • If aggregate data transfer approaches bus capacity

  • Bus may become a bottleneck as total data transfer demand approaches capacity of bus

Multiple-bus hierarchies

• Most systems use multiple buses to overcome these problems

• Multiple Bus Structure: several buses laid out in hierarchy

  • The bus with higher speed is closer to the CPU

  • The bus with low speed is in farther location

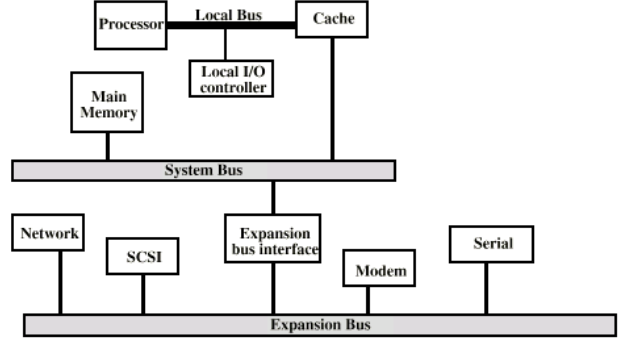

Traditional Bus Structure(ISA)

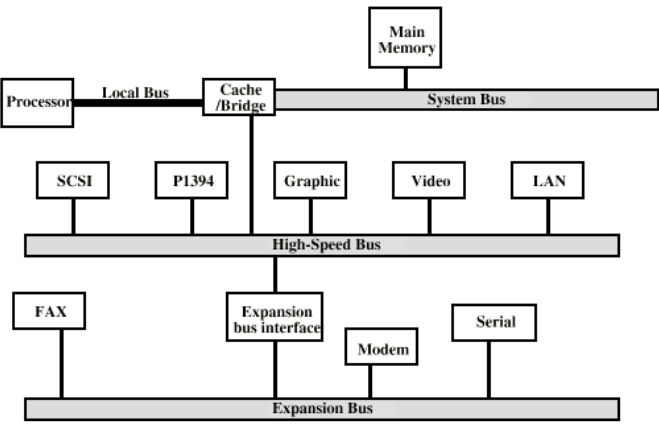

High Performance Bus

• A bridge is set between processor bus and the high-speed bus

• The cache controller is integrated into a bridge

• High speed devices are connected to the high speed bus

• Lower speed devices are connected to an expansion bus

diagram

Elements of bus design

• Type

  • Dedicated, multiplexed

• Method of arbitration

  • Centralized, distributed

• Timing

  • Synchronous, asynchronous

• Bus width

  • Address, data

• Data transfer type

  • Read, write, read-modify-write, read-after-write, block

Bus types

• Dedicated: Separate data & address lines

• Multiplexed: Shared lines, Address valid or data valid control line

  • More complex control
  • Ultimate performance

• Physical dedication: the use of multiple buses, each of which connects only a subset of modules

Bus arbitration! ! !

• Arbitration may be centralised or distributed

---

• Master - slave mechanism

  • Master controls the bus and place information onto it

  • Slave (target) receives information from the master

---

Two methods of arbitration

• Centralised: Single hardware device controlling bus access - bus controller (or arbiter)

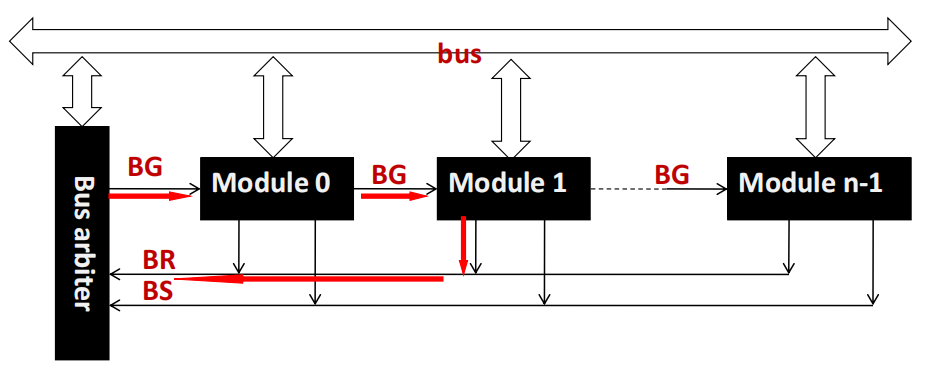

  1. The chaining method

  • Three controlling bus lines

    • BS: bus busy
    • BR: bus request
    • BR: bus grant

  • Any device sends a BR signal

  • BG passes through each module from the highest priority to the lowest priority

  • The device that close to the arbiter has higher priority

2. The counter polling method

   • Three controlling bus lines: BS, BR, BG

   • Arbiter uses a counter to send polling signals（instead of using BG signal）

   • Any device sends a BR signal

   • After receiving BR signal, when BS=0 (bus not busy), the arbiter sends device address

   • When the address matches the one that the device has, that device has gained the use of bus

   • The counter stops polling

3. Independent method

   • Each device has a BR, BG pair

   • The device that desire to use the bus sends BR

   • The arbiter decides which device can use the bus and sends BG to that device

     • Each device sends a request signal independently
     • Central arbiter decides which device can use the bus
     • Sends a BG signal to this device

• The Operation in General
  • Bus request
  • Bus arbitration
  • Device addressing
  • Data transfer
  • Bus release
• Distributed: there is no central controller

  • Each module may claim the bus

  • Control logic on all modules

Timing

• Timing – Refers to way in which events are coordinated on bus

• Synchronous timing

  • Occurrence of events on bus is determined by a clock

• Asynchronous timing

  • Occurrence of one event on a bus follows and depends on occurrence of a previous event

---

Timing – synchronous

• Events determined by clock signals

  • Control Bus includes clock line

  • A single 1-0 is a bus cycle

• All devices can read clock line

  • Usually sync on leading edge

  • Usually a single cycle for an event

Bus width ! ! !

• The width of data bus impacts system performance

  • How much information can be transferred at once

  • The wider the data bus, the greater the number of bits transferred at one time

• The width of address bus impacts system capacity

  • The wider the address bus, the greater the range of locations that can be referenced

  • How much information can be stored

• The width of control bus impacts system complexity

• All buses support to read and write the data

Bus data transfer

• Some bus systems also support a block data transfer

  • One address cycle followed by n data cycles

  • First data item is transferred to or from specified address

  • Remaining data items are transferred to or from subsequent addresses

Block data transfer

Bus speed ! ! !

• The bus speed reflects how many bits of information can be sent across each wire each second

• Bandwidth, also called throughput, bus transfer rate, refers to the total amount of data that can be transferred on the bus in a second

  • Measured in bits per second or bytes per second

• $Bandwidth=bus\ width \times bus\ speed\newline$

Summary ! ! !

• Bus system: a communication pathway connecting two or more devices

• The operation of bus

  • Obtain the use of bus
  • Data transfer via bus

• The bus hierarchy

  • Single bus
  • Multiple bus structures

• Elements of bus design: type，Method of arbitration，timing，bus width， Data transfer type

PCI Bus

• PCI: Peripheral Component Interconnection

  • Bus structure developed for Pentium in 1990

  • Intel released to public domain

  • High bandwidth, processor independent bus

• Characteristic

  • delivers better system performance for high-speed I/O subsystems

  • PCI requires very few chips to implement and supports

PCI Bus Lines (required)

• Systems lines

  • Including clock and reset

• Address & Data

  • 32 time mux lines for address/data
  • Interrupt & validate lines

• Interface Control

• Arbitration

  • Not shared
  • Direct connection to PCI bus arbiter

• Error lines

PCI Bus Lines (Optional)

• Interrupt lines

  • Not shared

• Cache support

• 64-bit Bus Extension

  • Additional 32 lines
  • Time multiplexed
  • 2 lines to enable devices to agree to use 64-bit transfer

• JTAG/Boundary Scan

  • For testing procedure

PCI Operations

• Transaction between initiator (master) and target

• Master claims bus

• Determine type of transaction

  • e.g. I/O read/write

• Address phase

• One or more data phases

---

• Bus command are specified by C/BE# lines during the address phase

Data transfers

• Every data transfer on the PCI bus is a single transaction consisting of one address phase and one or more data phases

• The fundamentals of all PCI data transfers are controlled with three signals

  • FRAME#: is driven by the master to indicate the beginning and end of a transaction

  • IRDY#: is driven by the master to indicate that it is ready to transfer data

  • TRDY#: is driven by the target to indicate that it is ready to transfer data

Bus arbitration

• PCI uses central arbitration scheme: each master agent has a unique REQ# and a GNT# signal

  • A simple request-grant handshake is used

• At a given instant in time, one or more PCI bus master may require the use of PCI bus

• An arbiter is used to efficiently manage access to a PCI bus that is shared by several masters
